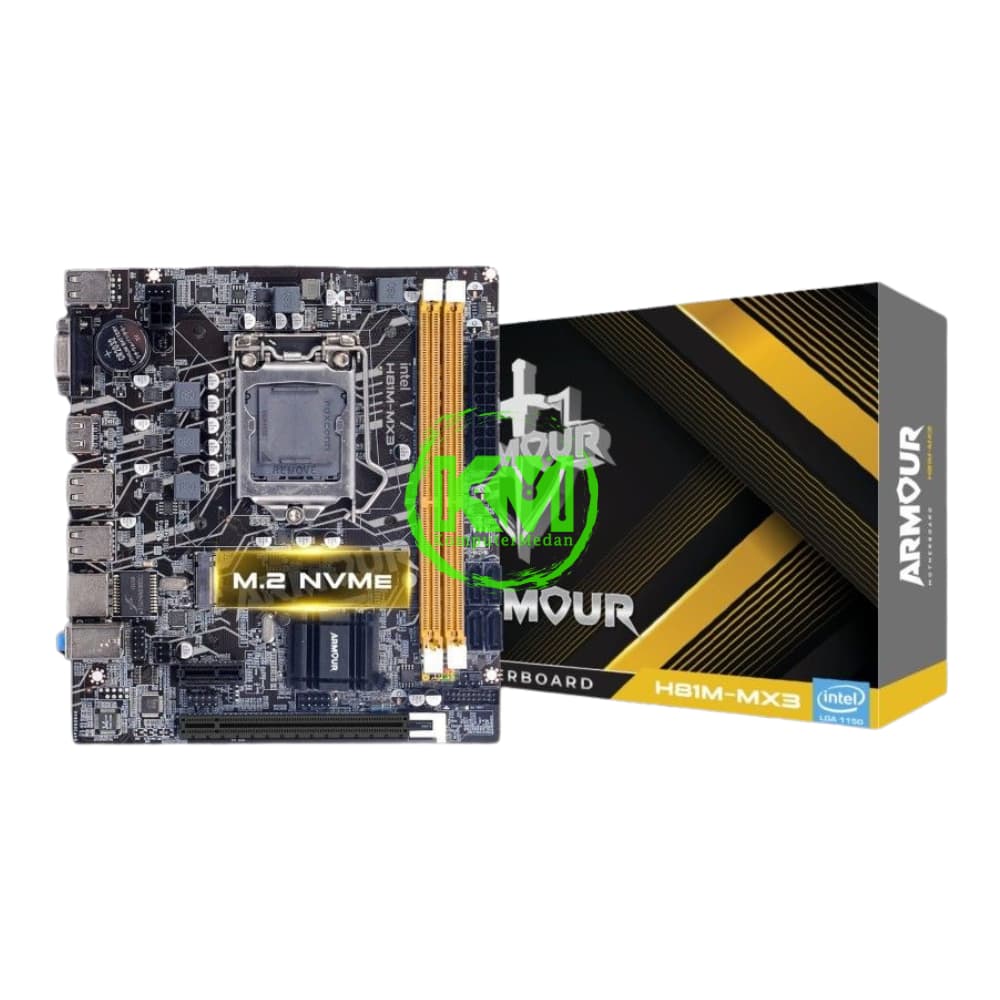

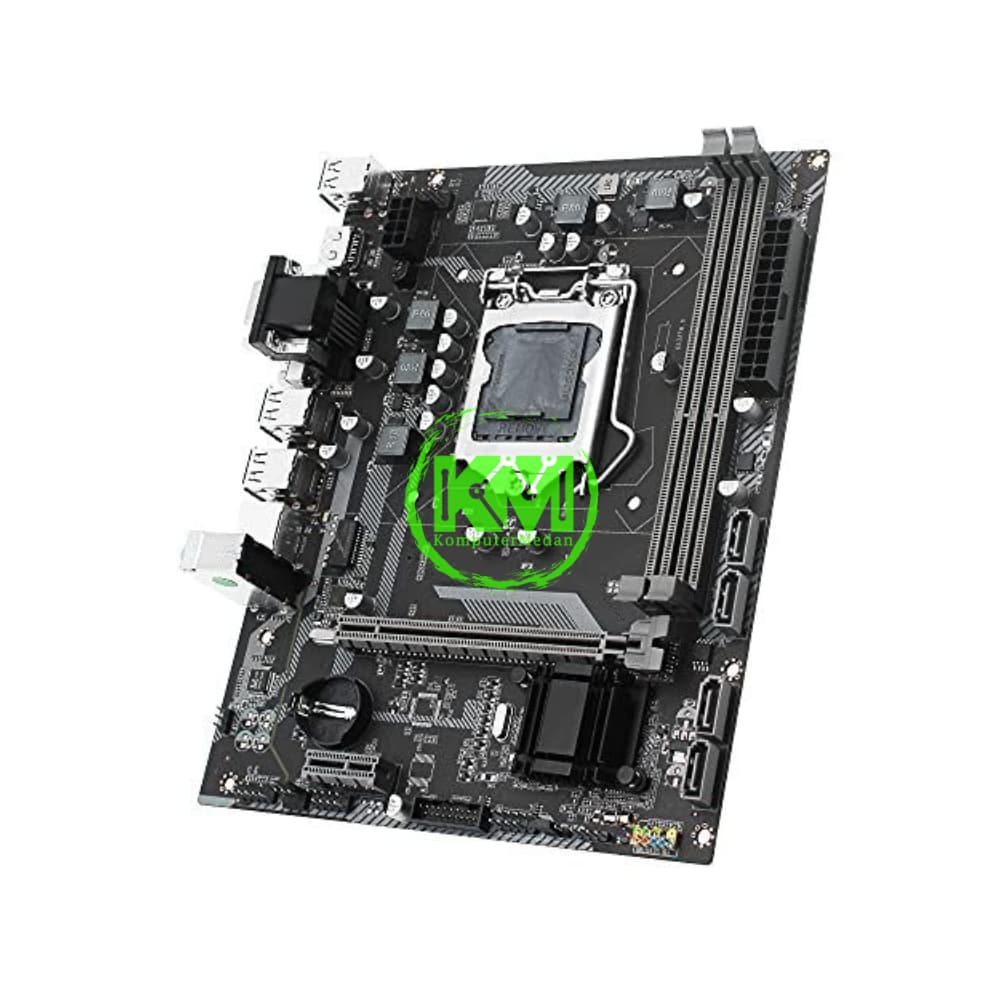

100% Original Products- The ARMOUR H81M-MX3 is a budget-friendly - Micro-ATX motherboard for Intel 4th Gen (LGA 1150) CPUs, - Featuring DDR3 RAM, an M.2 NVMe/SATA slot (with a selector switch) - HDMI/VGA/DVI outputs, USB 3.0/2.0 ports - PCIe slots, designed for small builds needing modern storage speed on an older platform
PRODUCT DETAIL
ARMOUR H81M-MX3 (INTEL) MOTHERBOARD SPESIFIKASI: FORM FACTOR Micro-ATX (m-ITX size according to one source) CPU SUPPORT Intel 4th Gen Core i3/i5/i7, Xeon E3 V3, Pentium, Celeron (LGA 1150 Socket) CHIPSET Intel H81/B85 Chipset (rebranded OEM board) RAM (MEMORY) 2 x DDR3 DIMM slots, Dual Channel, max 16GB total (supports 1066/1333/1600 MHz Non-ECC, Un-buffered memory) EXPANSION SLOTS 1 x PCIe x16 slot STORAGE * 1 x M.2 slot (supports NVMe PCIe and NGFF/SATA 3.0 modes via a jumper switch) * 1 x SATA 3.0 (6Gb/s) port * Multiple SATA 2.0 (3Gb/s) ports (total of 3-4 SATA ports) REAR I/O PORTS * 2 x USB 3.0 ports * Multiple USB 2.0 ports (total 6-8 ports available internally/externally) * 1 x RJ45 LAN port (Gigabit Ethernet) * VGA port, HDMI port (requires CPU with integrated graphics) * Audio jacks INTERNAL HEADERS * 1 x 4-pin CPU Fan header * 1 x 3-pin SYS Fan header * Front panel audio, front panel headers POWER CONNECTOR 24-pin ATX main power connector, 4-pin ATX 12V power connector FEATURES All solid capacitors, 3+1 phase power design
