100% Original Products- Socket: LGA 1155 (for Intel Core i Gen 2 & 3 processors). - Chipset: Intel H61 Express. - Memory (RAM): DDR3 (2 slots), supports speeds of 1066/1333/1600 MHz, maximum -capacity 8GB or 16GB. - Expansion Slots: 1x PCIe x16 (for VGA), can have PCIe x1 slot. - Storage: 4x SATA (usually SATA 2, some models have SATA 3), often an additional M.2- NVMe slot. - USB: USB 2.0 port, some modern variants have USB 3.0 port. - Video Output: HDMI, VGA (depending on model). - Additional Features: 5.1 Audio, LAN (RJ45).
PRODUCT DETAIL

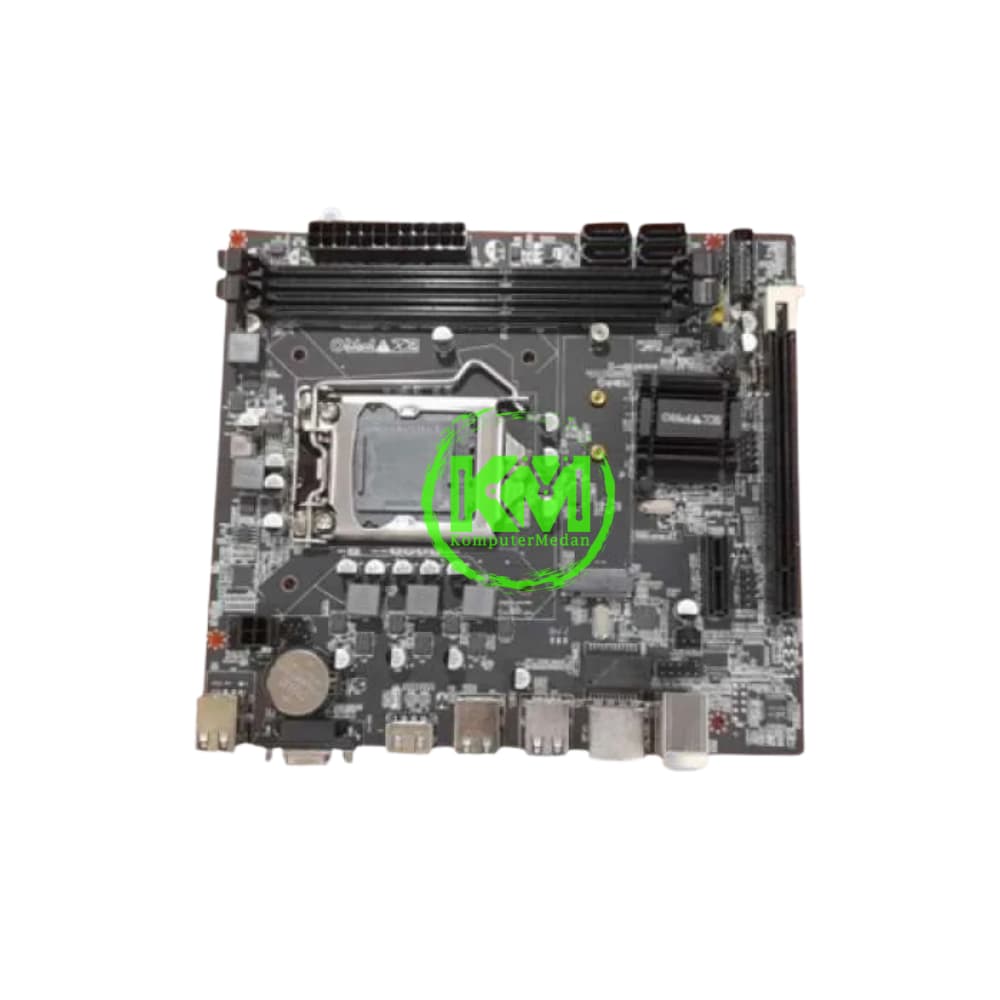

EZPRO H61 (INTEL) MOTHERBOARD SPESIFIKASI: CPU INTEL LGA 1155 Socket Support INTELSandy Bridge INTELSeries Processors(32nm). CHIPSET INTEL H61 Express Chipset. MEMORY Dual Channel DDR3 memory technology 2*240-pin DDR3 DIMM slots Supports DDR3 1333/1066 non-ECC,un-buffered memory Max 8GB. EXPANSION SLOTS 1*PCI Express x 16 slot 2*PCI Express x1 slots STORAGE EMBEDDED INTELH61 Chipset4*Serial ATA2 3GB/s coonectors. Audio 6-channel HD Audio CODEC LAN PCI-E Gigabit LAN USB Embedded 8*USB 3.0/1.1 Special Feataures 3+1+1 Phase CPU Power Support INTEL H61 Express Chipset REAR PANEL I/O 4*USB 3.0/1.1 ports 1*PS/2 keyboard/MS port 1*RJ-45 port 1*Audio I/O port 1*Coaxial Output 1*DVI Port & 1*VGA port INTERNAL I/O 4*USB 3.0/1.1 headers for 4 USB 3.0/1.1 port CPU / CHASSIS FAN CONNECTORS 1*8-pin ATX 12v power connector 1*24 pin ATX Power connector 1*COM port 1*HDMI_SPDIF header BIOS AMI 32MB SMT Flash ROM FORM FACTOR Micro-ATX Form Factor (245mm X 180mm)
