100% Original ProductsThe HS 420 is a work of functional beauty and user-centric innovation. Through dozens of prototypes and redesigns, and literally thousands of hours of rigorous testing by HAVN and Pro Gamers Group engineers, we have tailor-made this Hybrid Structure case to deliver unrivaled central GPU airflow within a dual chamber design while maintaining traditional mid-tower dimensions. Built for the most powerful fans and radiators on the market, it provides the thermal optimization you need for the most demanding tasks.
PRODUCT DETAIL

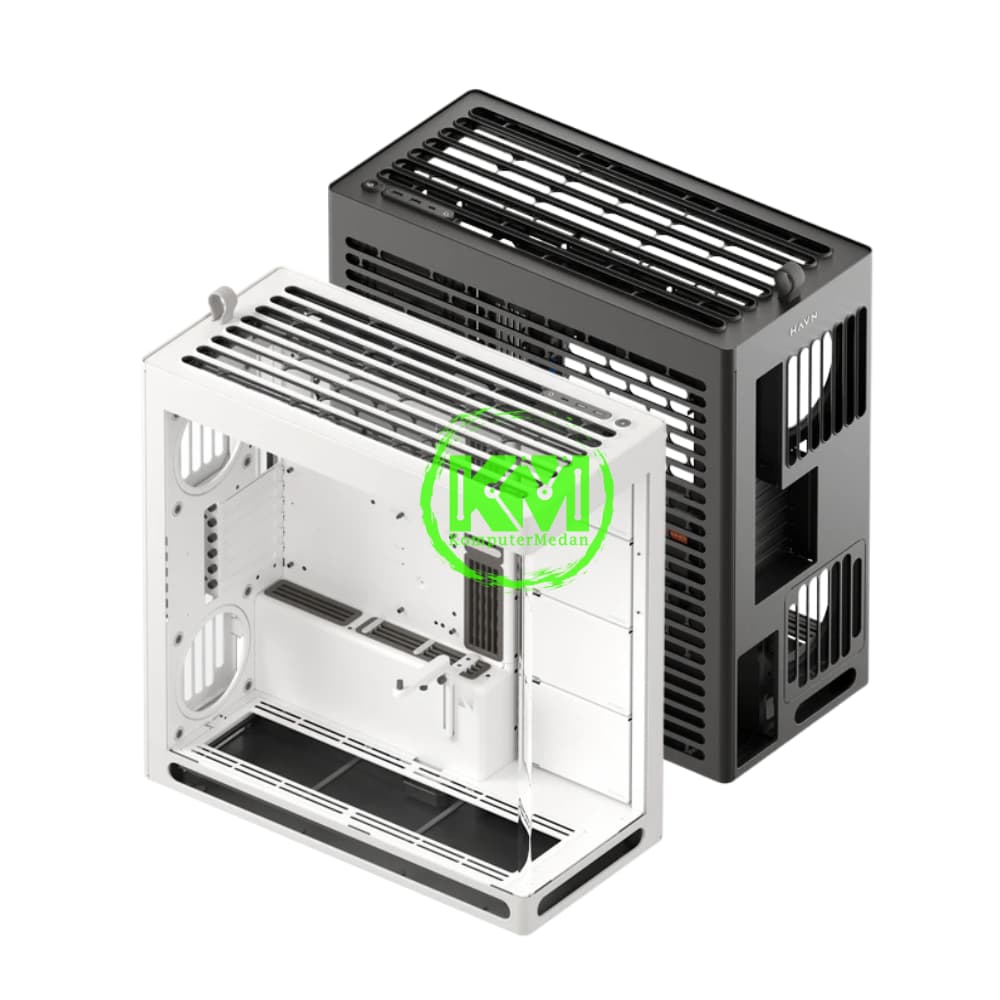

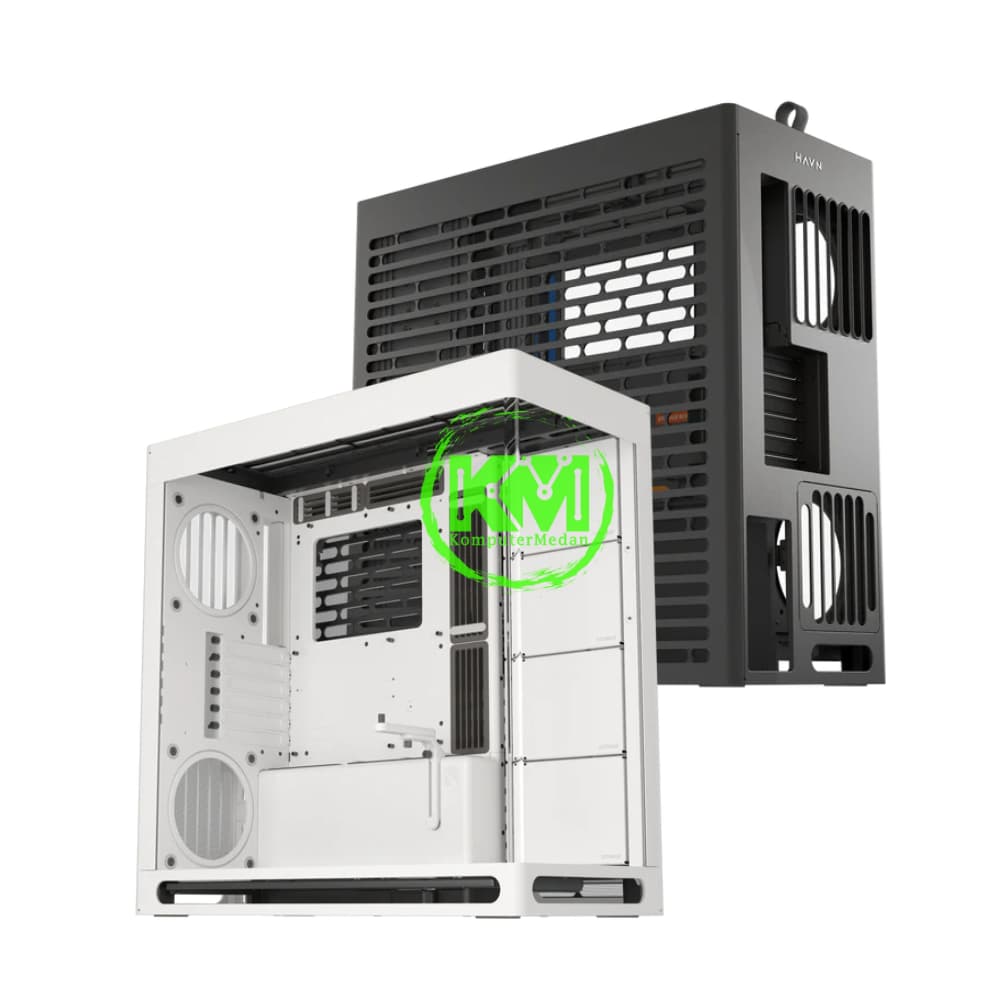

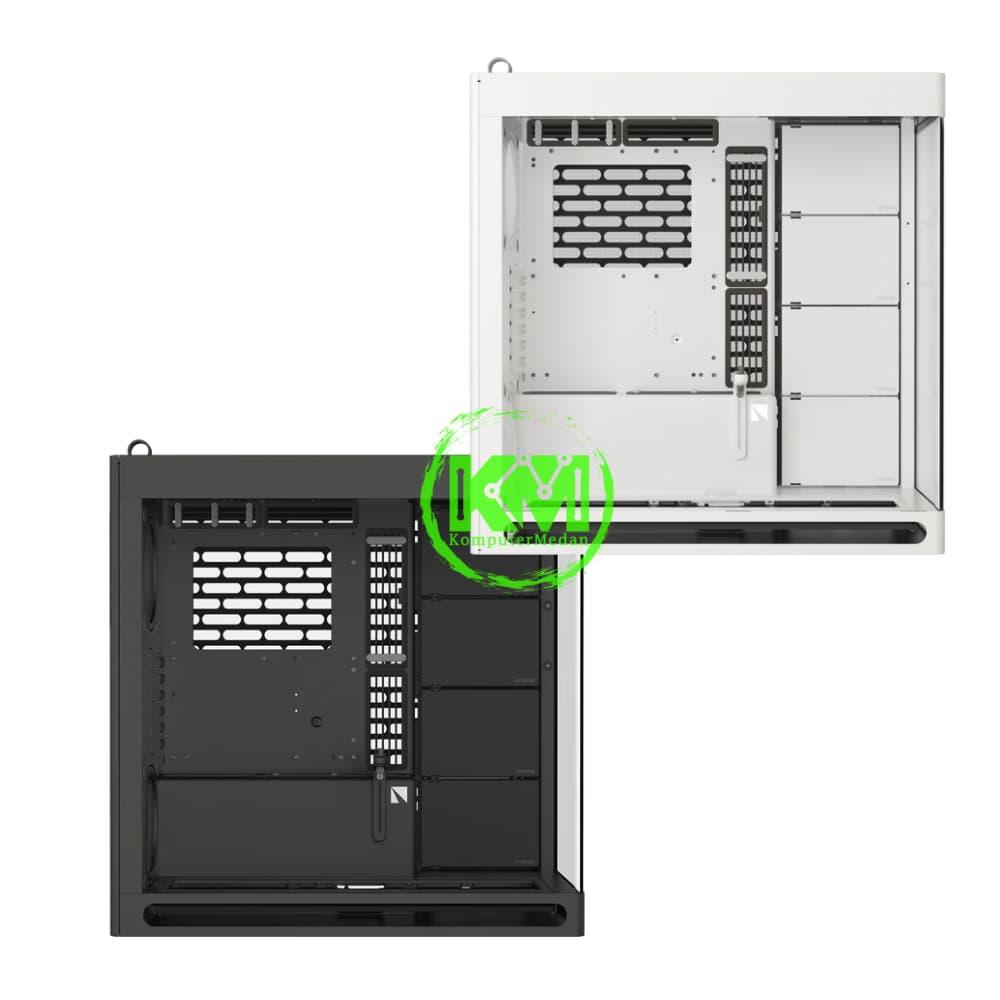

HS420 BASE EDITION BLACK WHITE CASING SPESIFIKASI FORM FACTOR Mid Tower MATERIAL SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets PC CASE DIMENSIONS(L X W X H) 541 x 259.5 x 547 mm NET WEIGHT 17.84 kg WARRANTY 1 year FRONT I/O USB 3.2 Gen 2 Type-C x1 USB 3.2 Gen 1 Type-A x2 Audio Jack x1 Power & Reset Button x1 MOTHERBOARD SUPPORT E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX EXPANSION SLOT 6 FAN SUPPORT Maximum Amount: 11 Top: 3 x 120 / 3 x 140 mm Right: 3 x 120 / 3 x 140 mm Bottom: 3 x 120 / 3 x 140 mm Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm) FAN PWM REPEATER Fan Ports: 2 x PWM repeaters, 12 ports total Location: 1 x Cable Management Tray 1 x PSU Shroud Fan Connectors: 6 ports per repeater x 4-pin PWM (Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port's signal.) Fan Rated Voltage: 12V Fan Safety Current: Up to 2.6A across 6 ports Power Connector: 1 x SATA Power Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max) CPU TOWER COOLER CLEAREANCE Height: Up to 185 mm. Liquid cooling recommended. LIQUID COOLING SUPPORT Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM) Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO) Bottom: 280 / 360 / 420 mm (Thickness: 120 mm) GRAPHICS CARD CLEARANCE Length: Up to 480 mm Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended. GPU SUPPORT 2 - 5 Slots RAM CLEARANCE If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm POWER SUPPLY SUPPORT ATX Length: Up to 220mm (Clearance - 290mm) STORAGE Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5'' Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' Storage Bay Included: 4x INTERNAL DISPLAY SUPPORT VESA Mounting: 75 x 75 mm / 100 x 100 mm Display Size: 14 in. (Max) Location: Front Right Pillar DUST FILTER Bottom: 1 (Removable) Top: 1 (Built-in) Right: 1 (Built-in) Rear Bottom: 1 (Removable)
