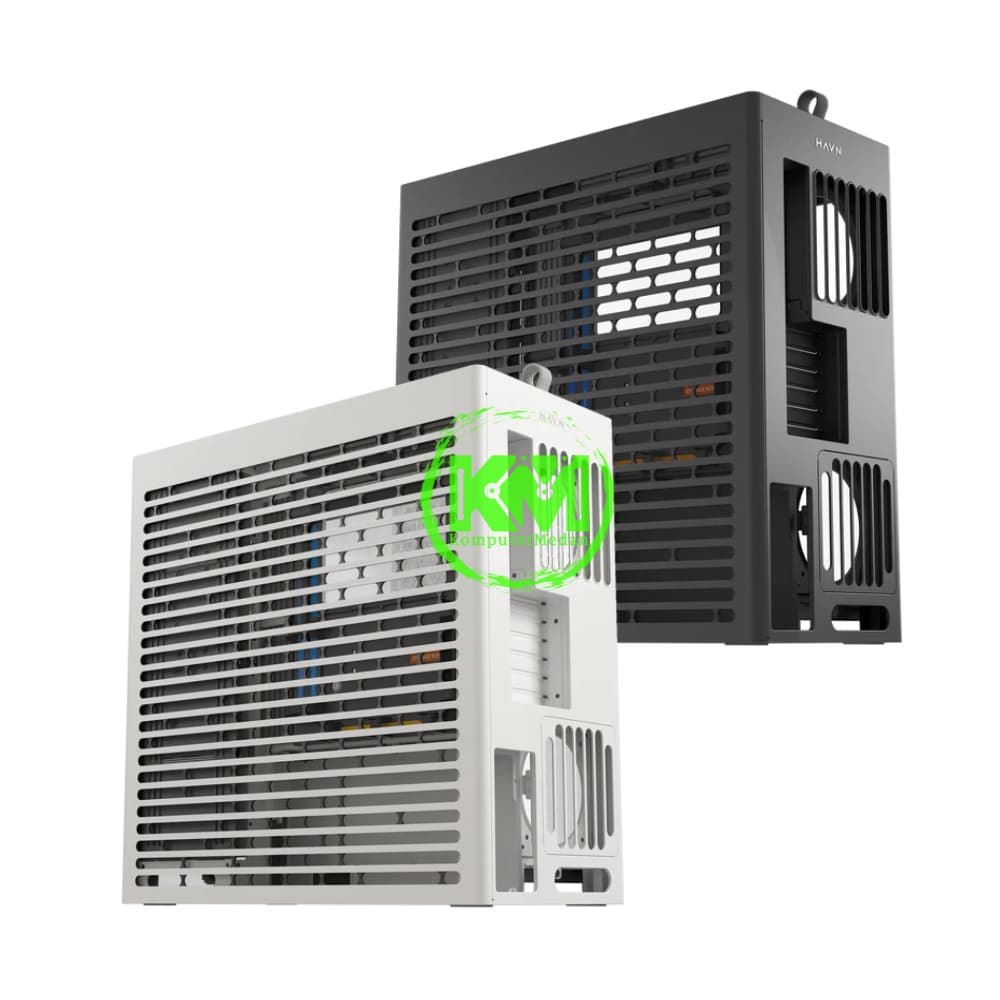

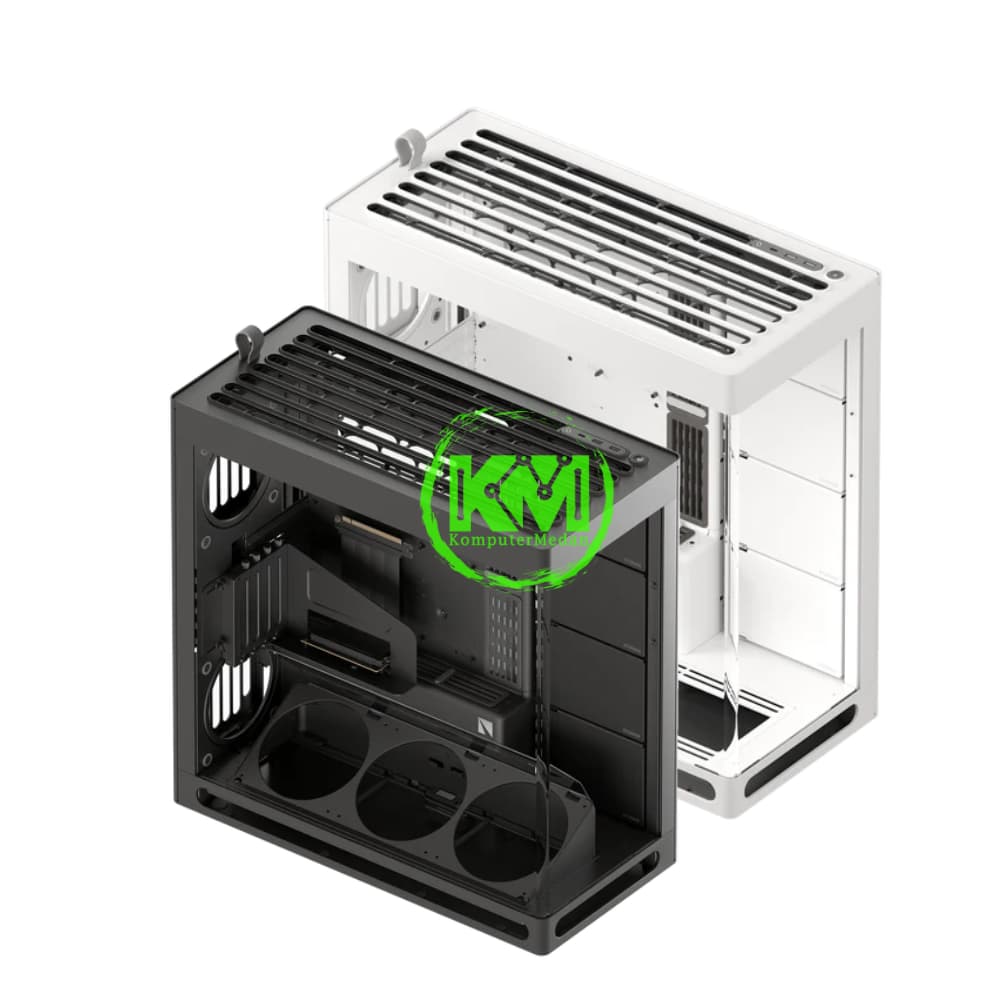

100% Original ProductsThe HAVN HS420 VGPU is a premium mid-tower PC case, available in black or white, featuring a dual-chamber design, panoramic tempered glass, and extensive cooling support for up to 11 fans or dual 420mm radiators, plus a built-in PCIe 5.0 riser for vertical GPU mounting, accommodating E-ATX boards and large components with robust cable management
PRODUCT DETAIL
HS420 VGPU BLACK WHITE CASING SPESIFIKASI FORM FACTOR Mid Tower MATERIAL SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets PC CASE DIMENSIONS(L X W X H) 541 x 259.5 x 547 mm NET WEIGHT 17.84 kg WARRANTY 1 year FRONT I/O USB 3.2 Gen 2 Type-C x1 USB 3.2 Gen 1 Type-A x2 Audio Jack x1 Power & Reset Button x1 MOTHERBOARD SUPPORT E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX EXPANSION SLOT 6 FAN SUPPORT Maximum Amount: 11 Top: 3 x 120 / 3 x 140 mm Right: 3 x 120 / 3 x 140 mm Bottom: 3 x 120 / 3 x 140 mm Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm) FAN PWM REPEATER Fan Ports: 2 x PWM repeaters, 12 ports total Location: 1 x Cable Management Tray 1 x PSU Shroud Fan Connectors: 6 ports per repeater x 4-pin PWM (Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port's signal.) Fan Rated Voltage: 12V Fan Safety Current: Up to 2.6A across 6 ports Power Connector: 1 x SATA Power Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max) CPU TOWER COOLER CLEAREANCE Height: Up to 185 mm. Liquid cooling recommended. LIQUID COOLING SUPPORT Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM) Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO) Bottom: 280 / 360 / 420 mm (Thickness: 120 mm) GRAPHICS CARD CLEARANCE Length: Up to 480 mm Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended. GPU SUPPORT 2 - 5 Slots RAM CLEARANCE If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm POWER SUPPLY SUPPORT ATX Length: Up to 220mm (Clearance - 290mm) STORAGE Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5'' Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' Storage Bay Included: 4x INTERNAL DISPLAY SUPPORT VESA Mounting: 75 x 75 mm / 100 x 100 mm Display Size: 14 in. (Max) Location: Front Right Pillar DUST FILTER Bottom: 1 (Removable) Top: 1 (Built-in) Right: 1 (Built-in) Rear Bottom: 1 (Removable)
