100% Original Products-Supports 9th and 8th Gen Intel® Core™ Processors -Dual Channel Non-ECC Unbuffered DDR4 -8-Channel HD Audio with High Quality Audio Capacitors -Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface -GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management -HDMI 1.4, D-Sub Ports for Multiple Display -CEC 2019 Ready, Save Power With a Simple Click -Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP -All new GIGABYTE™ APP Center, simple and easy use -Anti-Sulfur Resistors Design
PRODUCT DETAIL

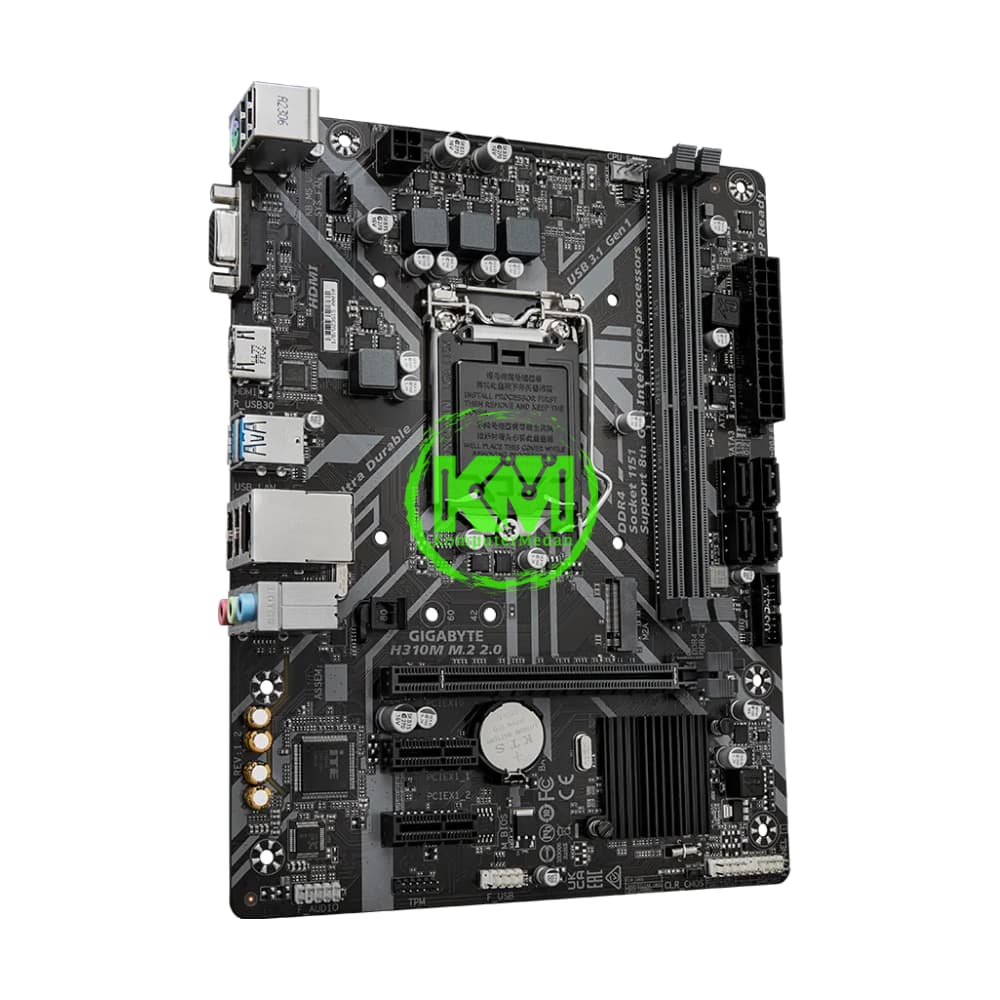

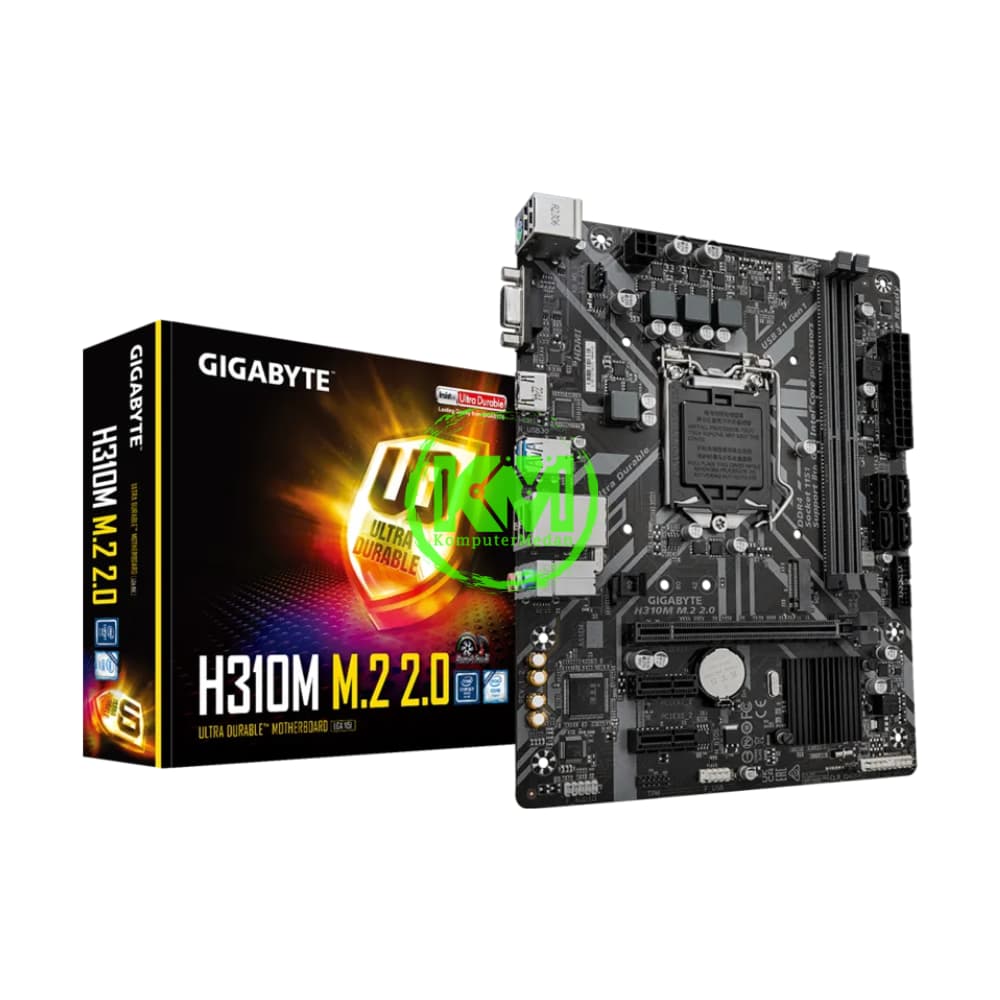

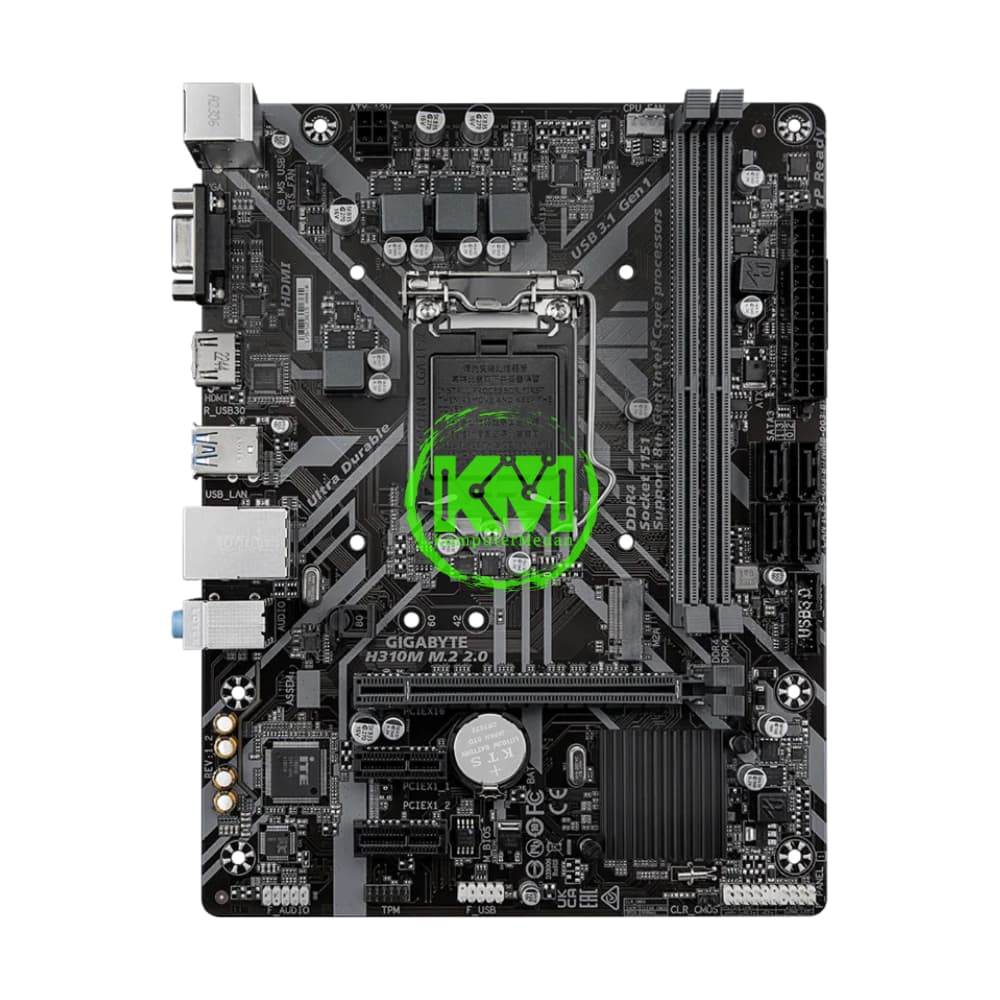

GIGABYTE H310M M.2 (INTEL) MOTHERBOARD SPESIFIKASI : PROCESSOR Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) CHIPSET Intel® H310 Express Chipset MEMORY 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor. (Please refer "Memory Support List" for more information.) INTEGRATED GRAPHICS CARD Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB AUDIO Realtek® Audio codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN Realtek ® GbE LAN chip (10/100/1000 Mbit) ADDITIONAL SLOTS 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) STORAGE INTERFACE Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors USB Chipset: 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) INTERNAL I/O CONNECTOR 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper REAL PANEL CONNECTORS 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O CONTROLLER iTE® I/O Controller Chip HARDWARE MONITORING Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 UNIQE FEATURES Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install SOFTWARE PACKAGE Norton® Internet Security (OEM version) LAN bandwidth management software Operating system Support for Windows 11 64-bit Support for Windows 10 64-bit FORM FACTOR Micro ATX Form Factor; 22.6cm x 17.4cm
