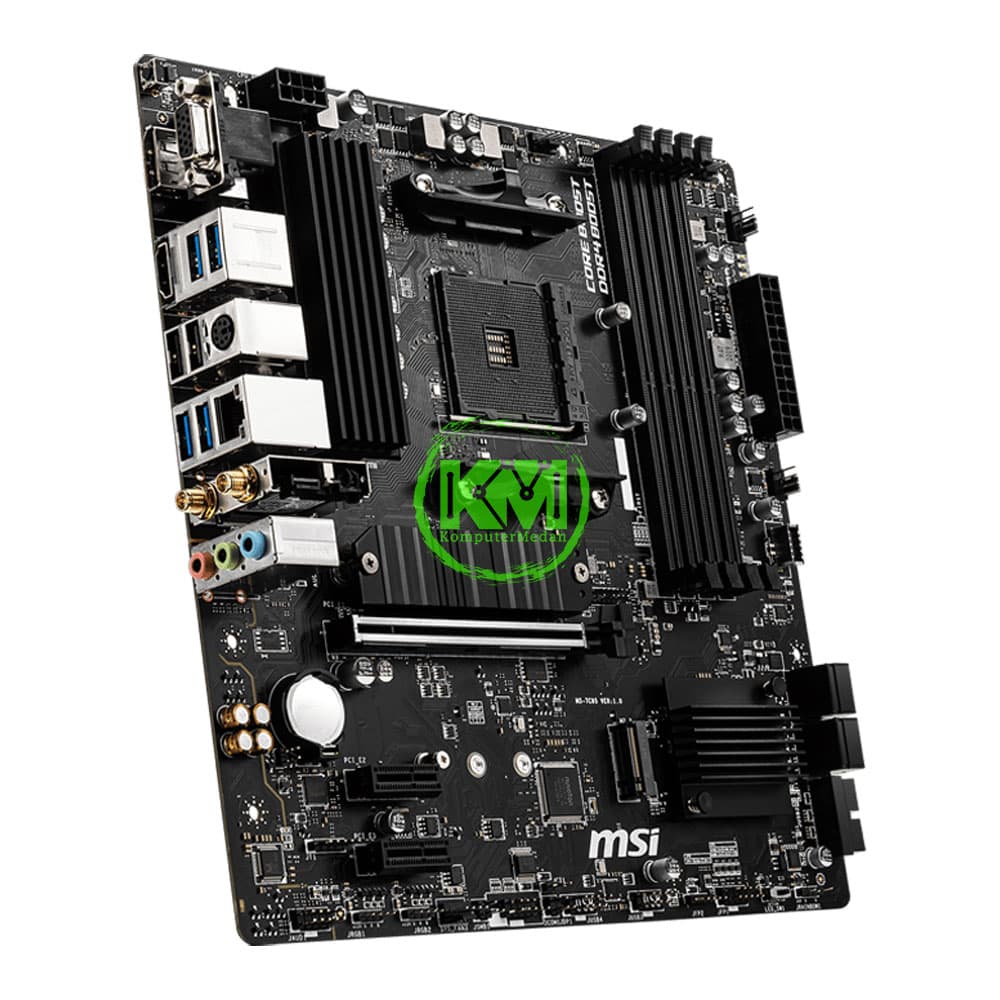

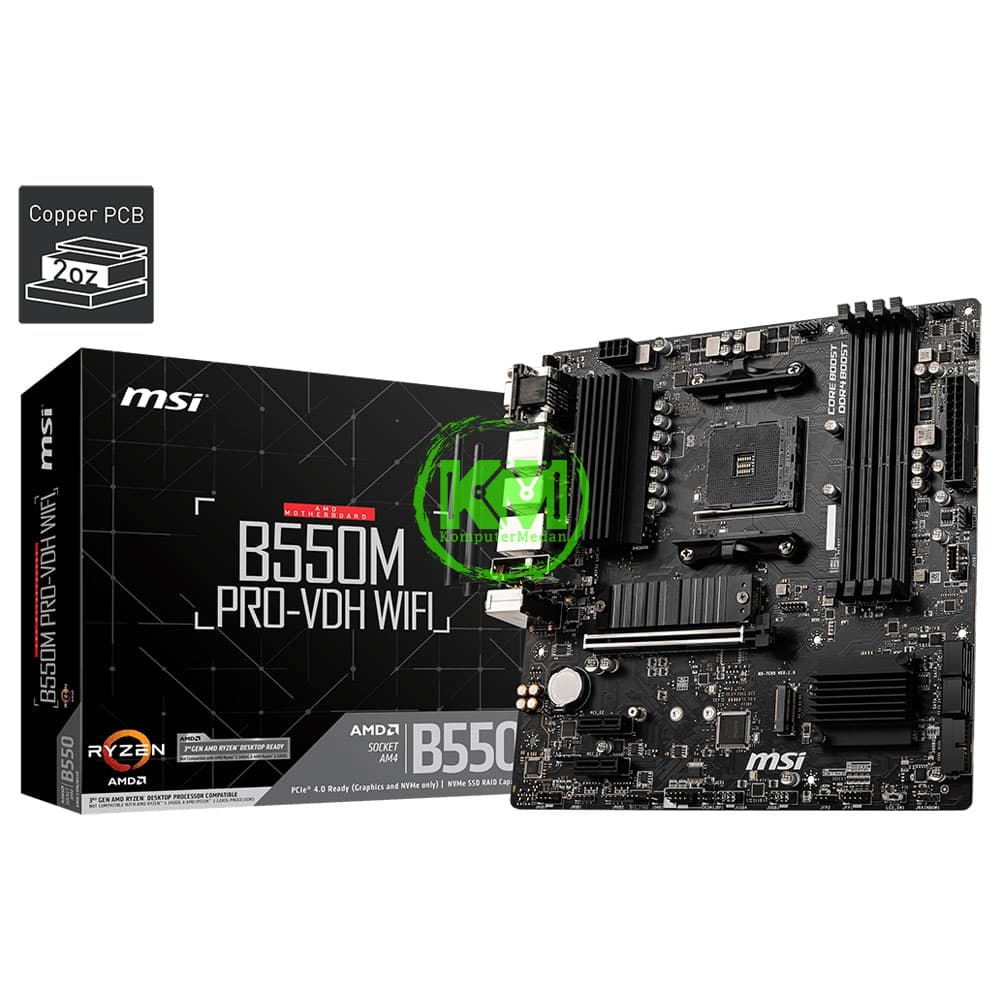

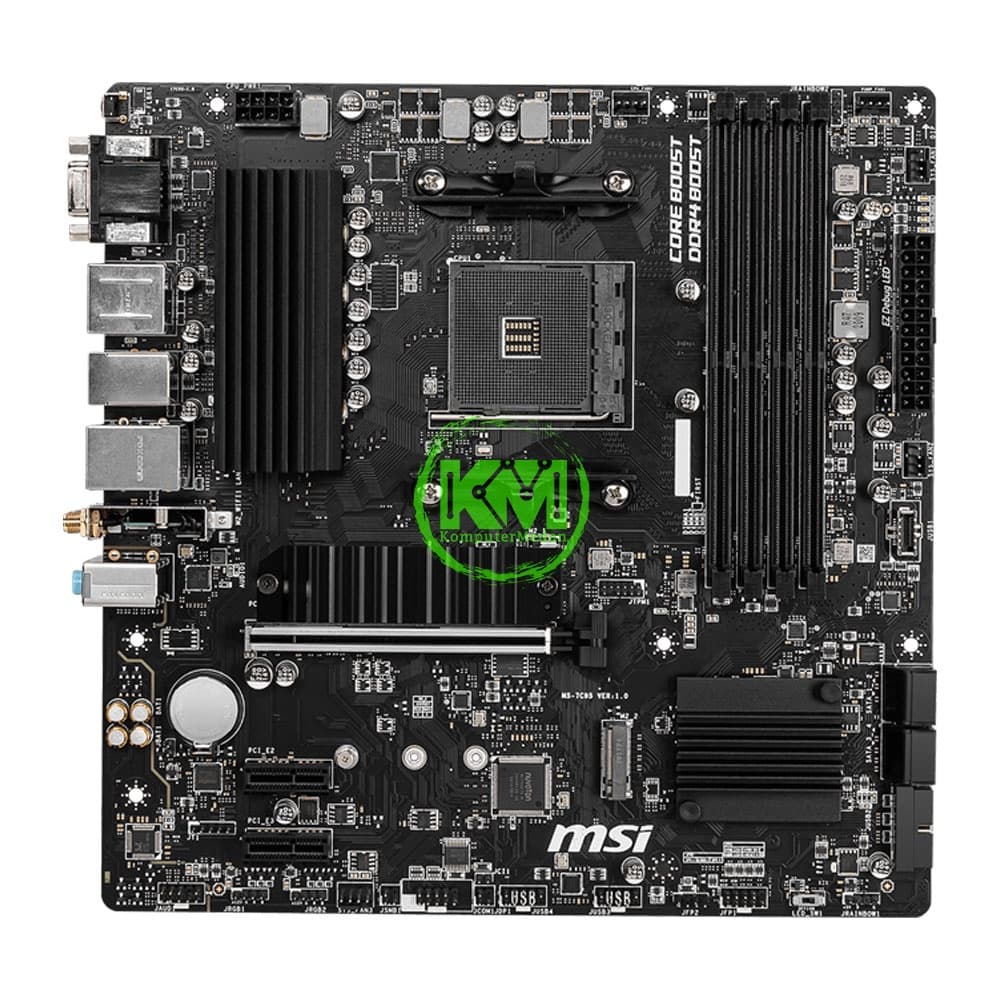

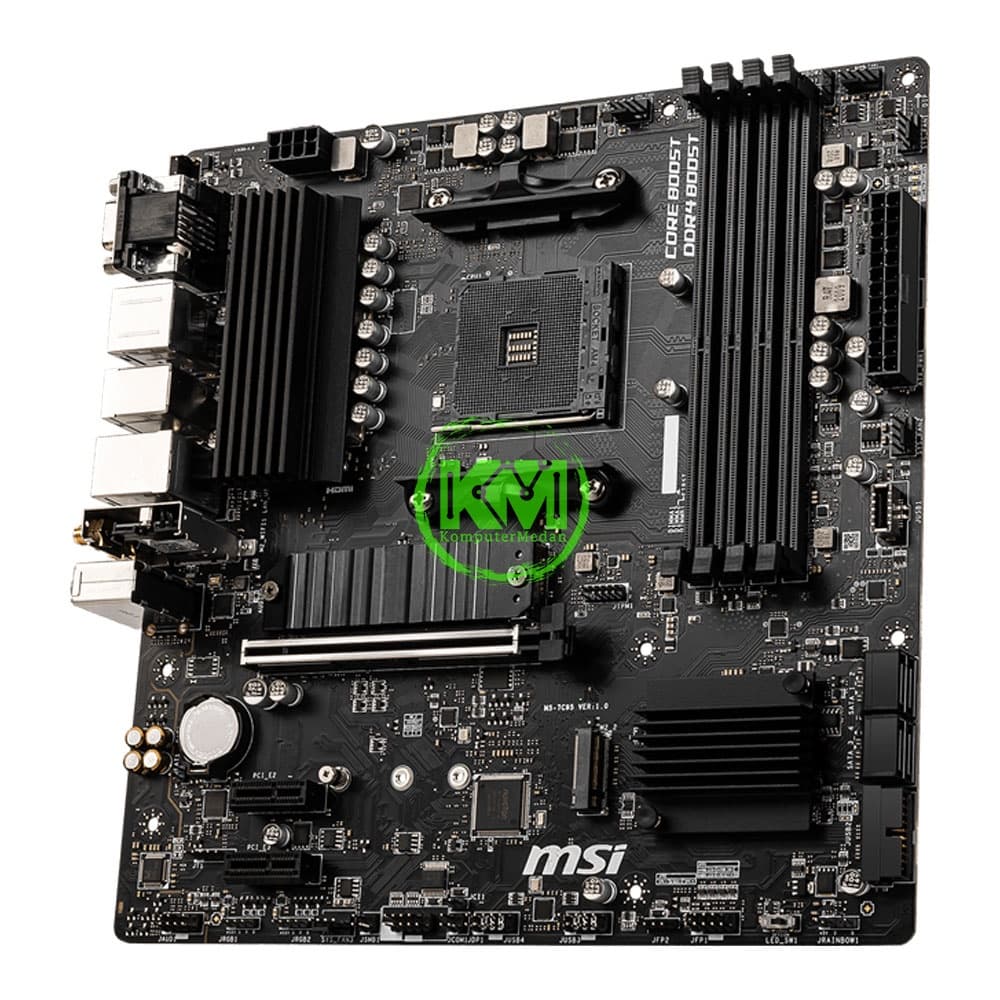

MSI B550M PRO-VDH WIFI (AMD) MOTHERBOARD

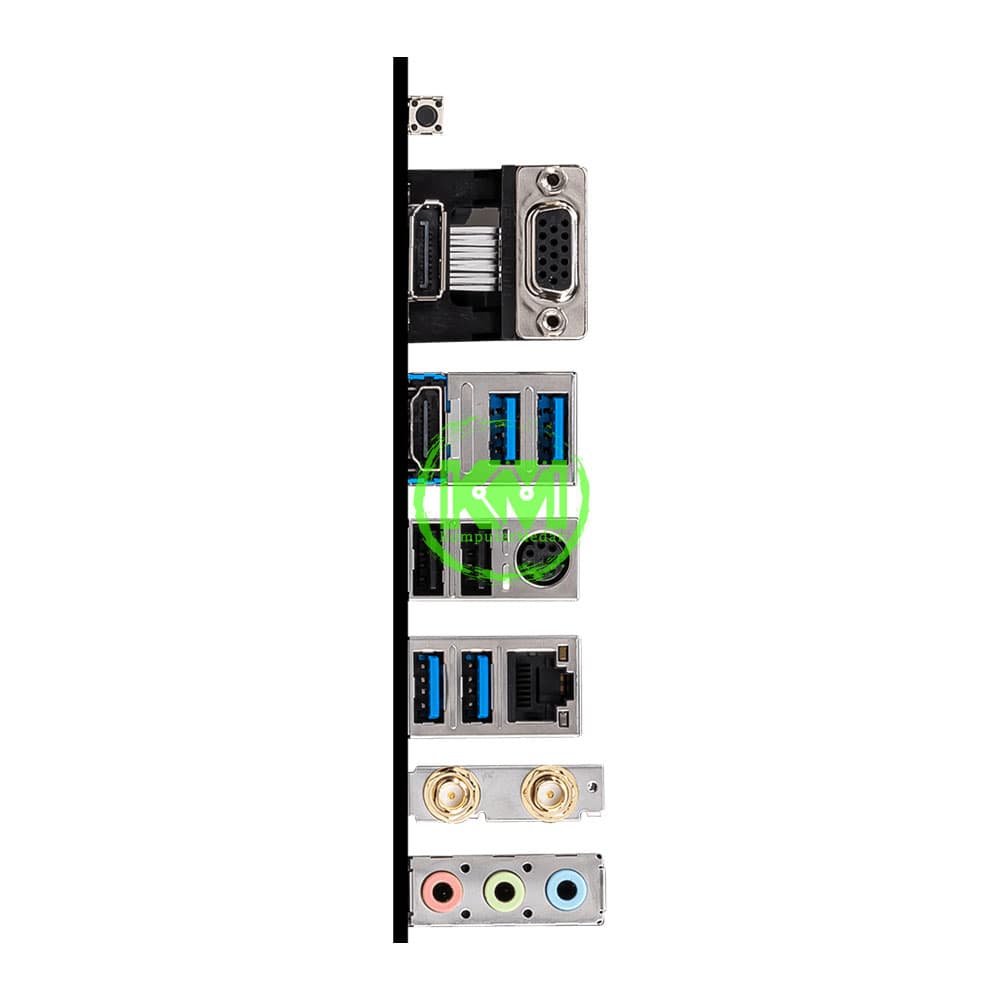

MSI B550M PRO-VDH WIFI (AMD) MOTHERBOARD SPESIFIKASI: CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors CHIPSET AMD® B550 Chipset MEMORY -4x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE *1DPC 1R max speed 4400 MHZ *1DPC 2R max speed 3733 MHZ *2DPC 1R max speed 3866 MHZ *2DPC 2R max speed 3466 MHZ -Dual channel memory architecture -Supports non-ECC UDIMM memory -Supports ECC UDIMM memory -Supports un-buffered memory EXPANSION SLOT 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots ONBOARD GRAPHICS 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz Support HDCP 1.4 & 2.3 Maximum shared memory of 16 GB STORAGE AMD B550 Chipset -4x SATA 6Gb/s ports -2x M.2 slots (Key M) *M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices *M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices USB -AMD B550 Chipset *3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) *6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) -AMD Processor *4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel AUDIO Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio LAN 1x Realtek® 8111HN Gigabit LAN controller WIRELESS LAN & BLUETOOTH® -Wi-Fi AC Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 INTERNAL CONNECTORS 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper Back panel ports -VGA -USB 3.2 Gen 1 5Gbps Type-A -Keyboard / Mouse -LAN -Flash BIOS Button -DisplayPort -HDMI™ -USB 2.0 -USB 3.2 Gen 1 5Gbps Type-A -Wi-Fi Antenna connectors -3x Audio jacks DIMENSIONS Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) MOUNTING 8 mounting holes
