100% Original Products- Supports AMD RyzenTM 8000 / 7000 Series Desktop Processor - Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC) - Enhanced Power Design: 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost - Premium Thermal Solution: Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr made for high-performance systems and non-stop gaming experience - High Quality PCB: 8-layer PCB is created with 2oz thickened copper and server grade material level - DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor - Gaming Experience Lightning Fast: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2 - 2.5G LAN and Wi-Fi 6E Solution: Enhanced network solutions for professional and multimedia use. Provides a secure, stable and fast network connection - MYSTIC LIGHT: 16.8 million colors/luxury light effects are controlled with a single click. MYSTIC LIGHT SYNC supports ARGB Gen2 strips, RGB strips and latest Ambient devices. - AUDIO BOOST 5: Indulge your ears with studio grade sound quality for the most immersive gaming experience.
PRODUCT DETAIL

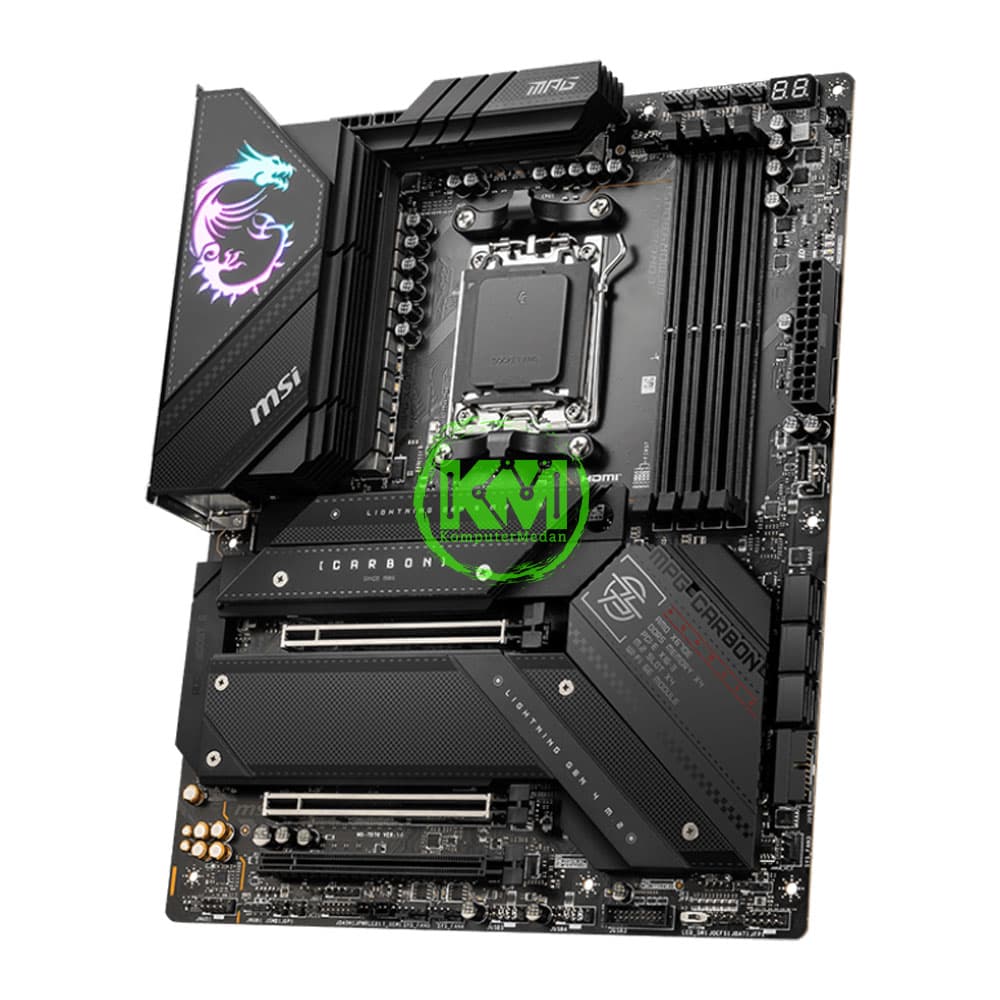

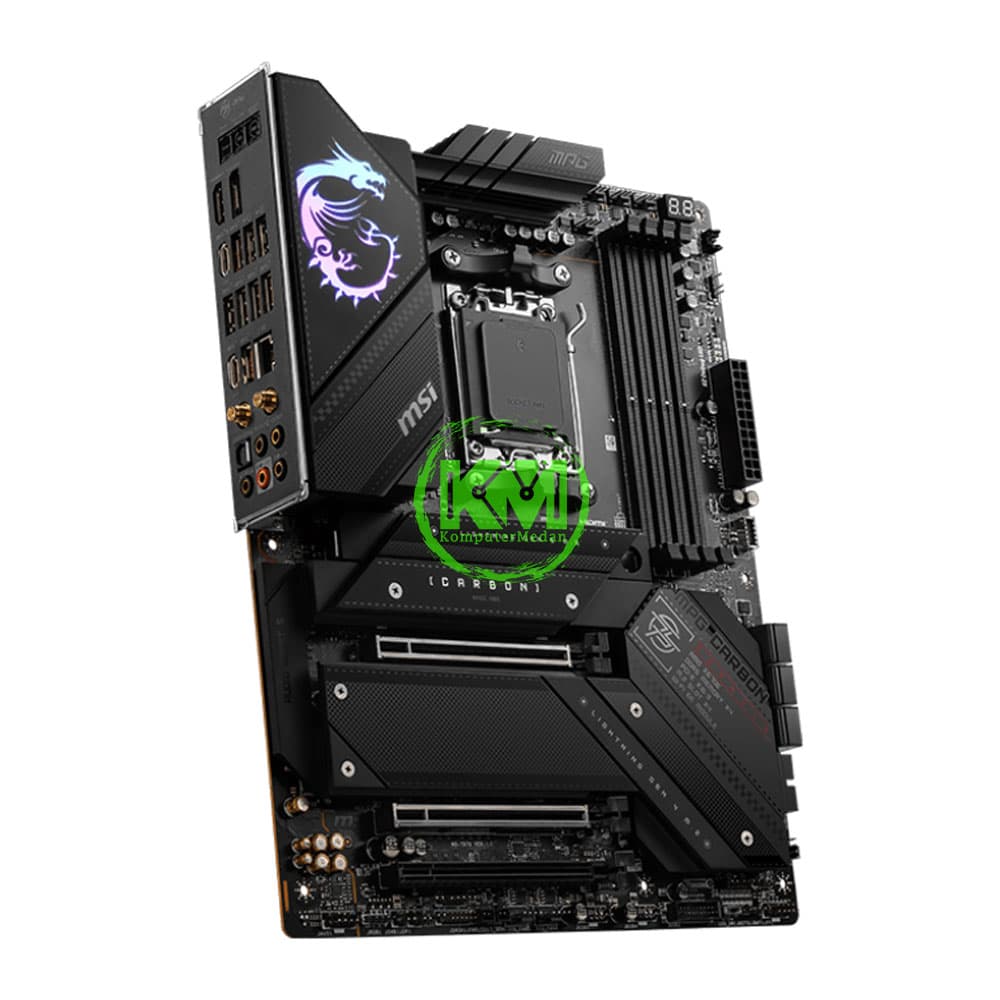

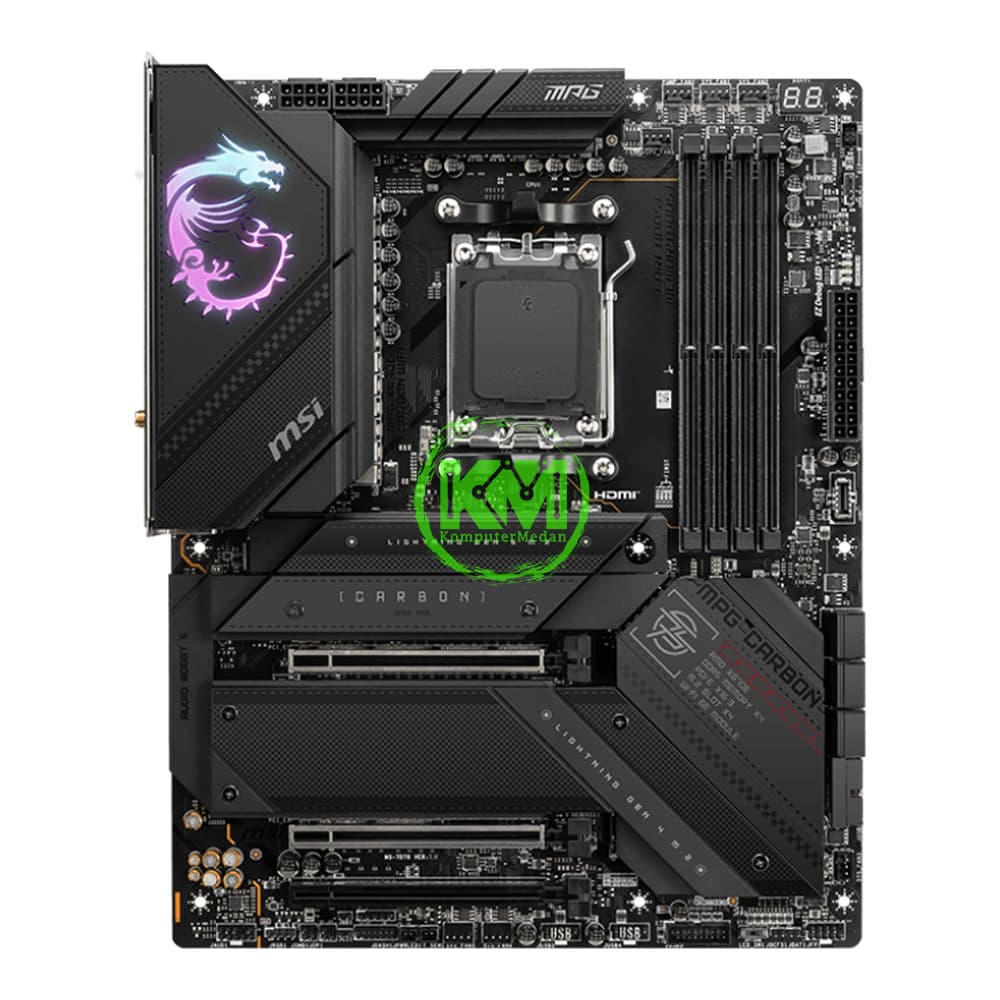

MSI MPG X670E CARBON WIFI (AMD) MOTHERBOARD SPESIFIKASI: CHIPSET AMD X670 CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 MEMORY 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO ONBOARD GRAPHICS 1x HDMI™ Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 1x Type-C Display port SLOT 3x PCI-E x16 slot (Qty) • Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x0/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x0/x4 (For Ryzen™ 8500/ 8300 Series processors) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) AUDIO Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel STORAGE 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G (Qty) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor MULTI-GPU AMD MULTI-GPU Support RAID •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors. USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 4x USB 5Gbps Type A (Front) 6x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) LAN Realtek® RTL8125BG 2.5Gbps LAN INTERNAL I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. LED FEATURE 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED BACK PANEL PORTS -Clear CMOS Button -Flash BIOS Button -DisplayPort -USB 2.0 -2.5G LAN -Audio Connectors -Smart Button -HDMI™ -USB 10Gbps (Type-C Display port) -USB 10Gbps (Type-A) -USB 20Gbps (Type-C) -Wireless / Bluetooth -S/PDIF-Out OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit PCB INFO ATX 304.8mmx243.84mm
