Motherboard

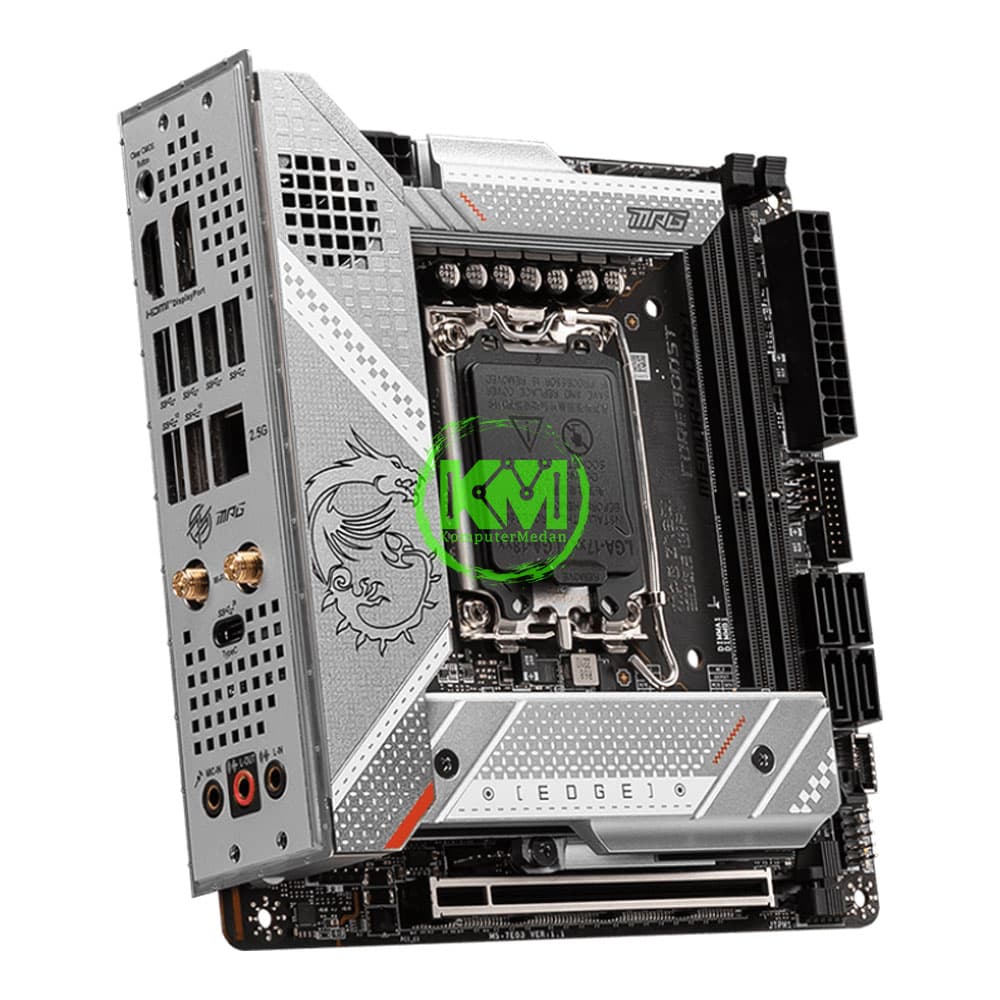

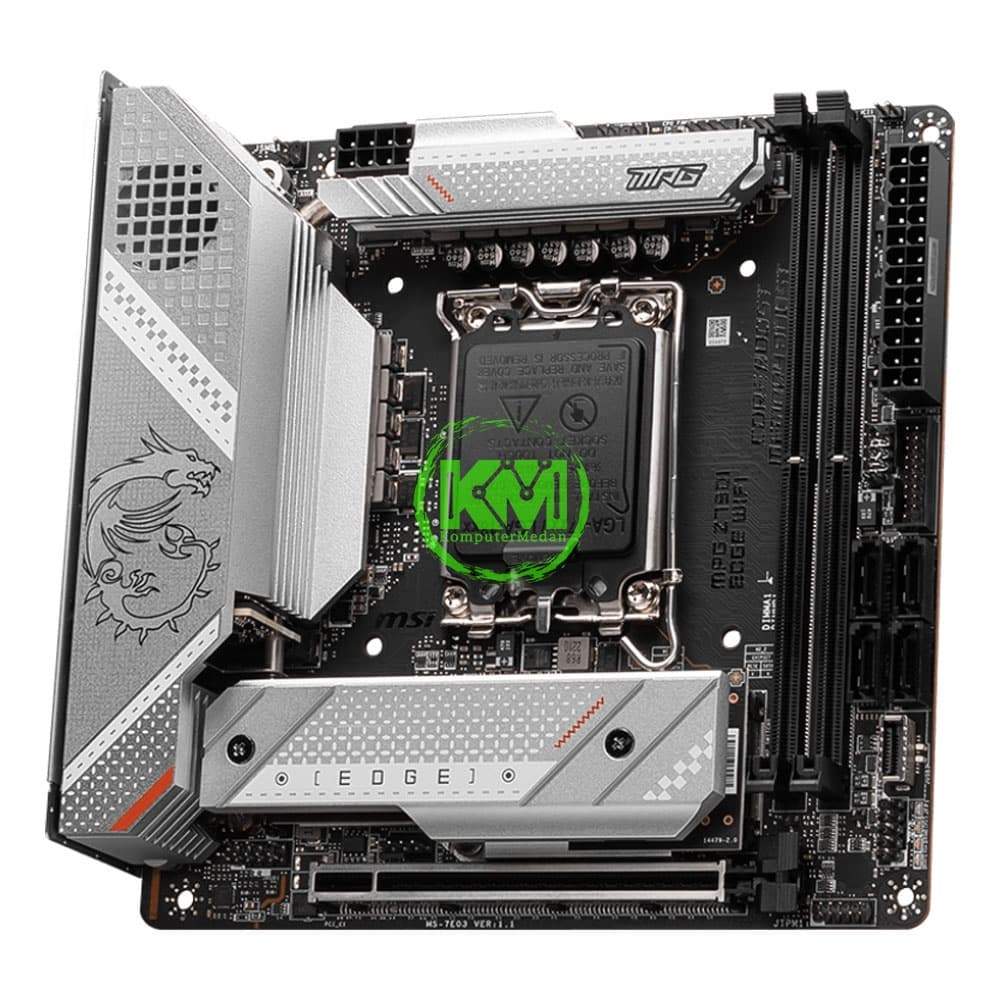

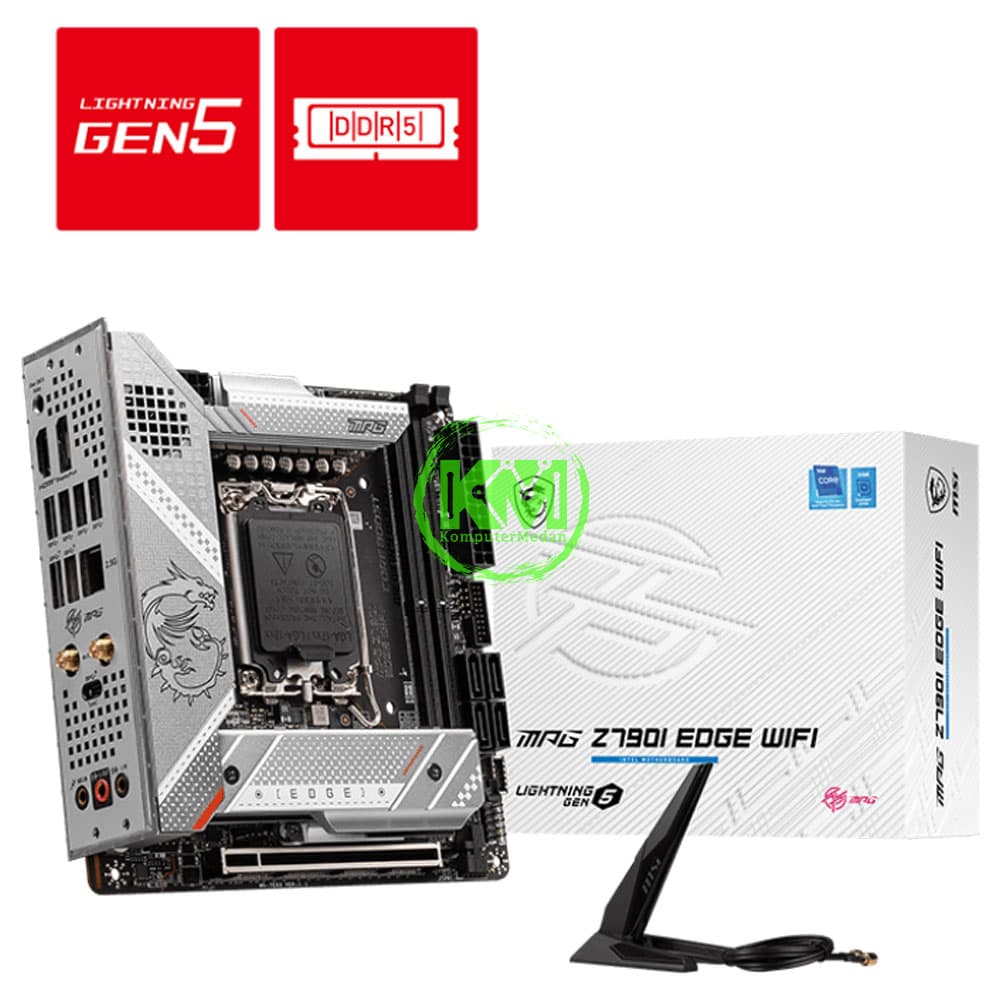

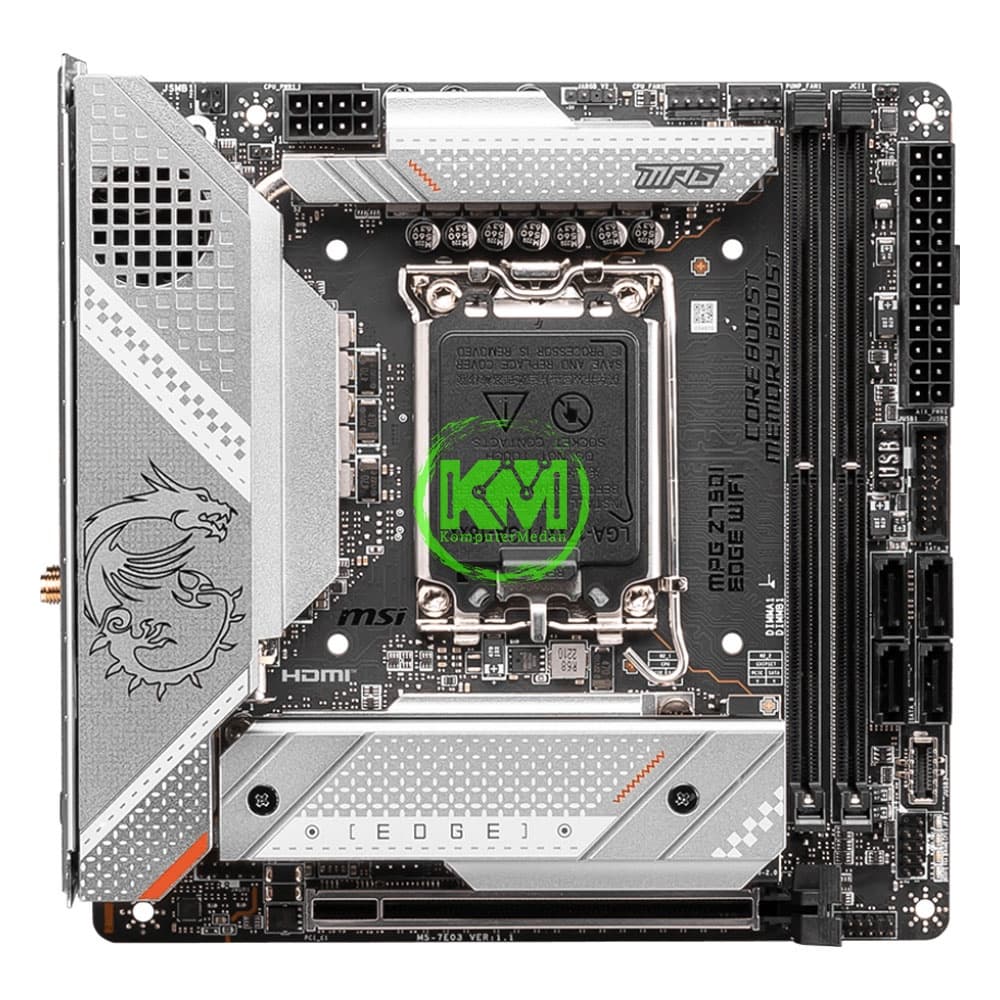

MSI MPG Z790I EDGE WIFI (INTEL) MOTHERBOARD
Fast shipping – All over Indonesia
100% Original Products- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket - Supports DDR5 Memory, up to 8000+(OC) MHz Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 - Enhanced Power Design: Direct 10+1+1 phases power, Core Boost, Memory Boost - Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience - 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience - High Quality PCB: 12-layer PCB made by server grade level material - Pre-installed I/O Shield: Better EMI protection and more convenience for installation
PRODUCT DETAIL
MSI MPG Z790I EDGE WIFI (INTEL) MOTHERBOARD SPESIFIKASI: CHIPSET INTEL Z790 CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 MEMORY 2x DDR5, Maximum Memory Capacity 128GB Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 7200+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory ONBOARD GRAPHICS 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. SLOT 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) AUDIO Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel STORAGE 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices USB 2x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) LAN Intel® 2.5Gbps LAN INTERNAL I/O 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. LED FEATURE 4x EZ Debug LED BACK PANEL PORTS -Display Port -2.5G LAN -USB 20Gbps (Type-C) -Audio Connectors -Clear CMOS -HDMI™ -USB 5Gbps (Type-A) -USB 10Gbps (Type-A) -Wi-Fi / Bluetooth OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit PCB INFO Mini-ITX 170mmx170mm
