Motherboard

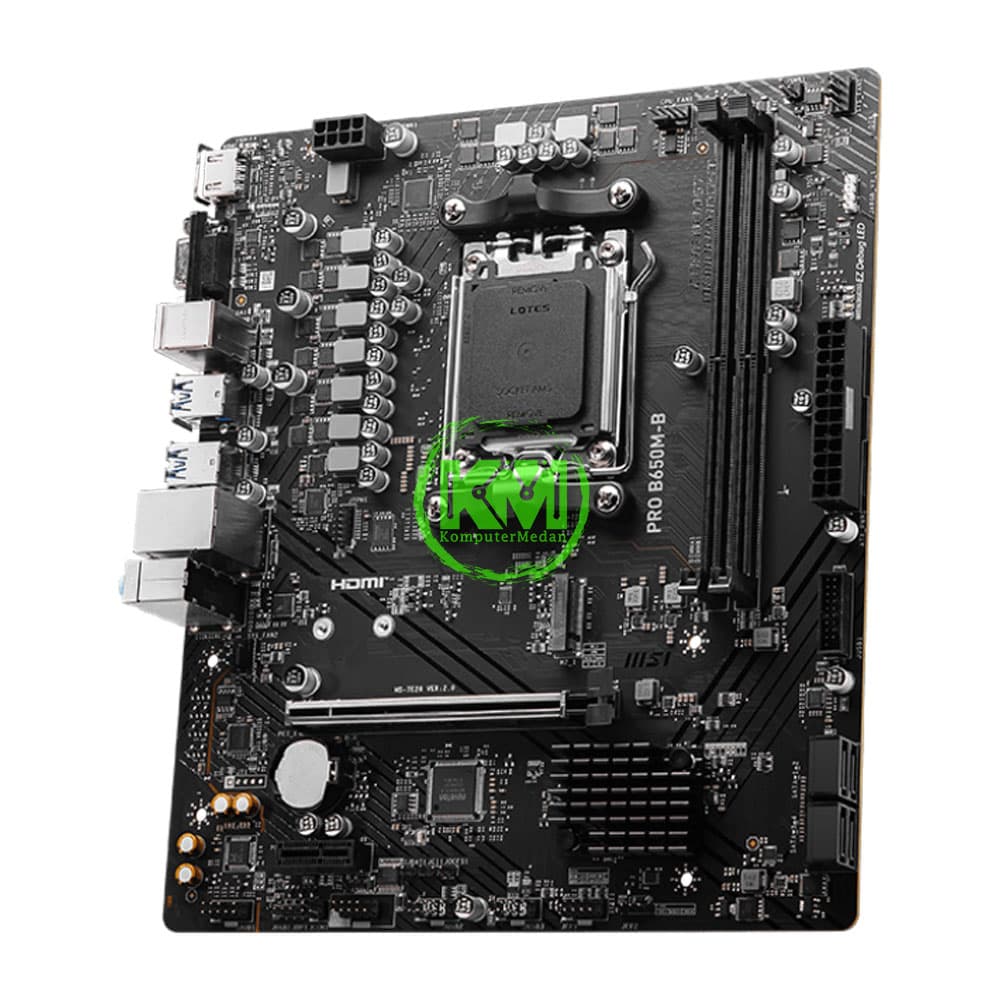

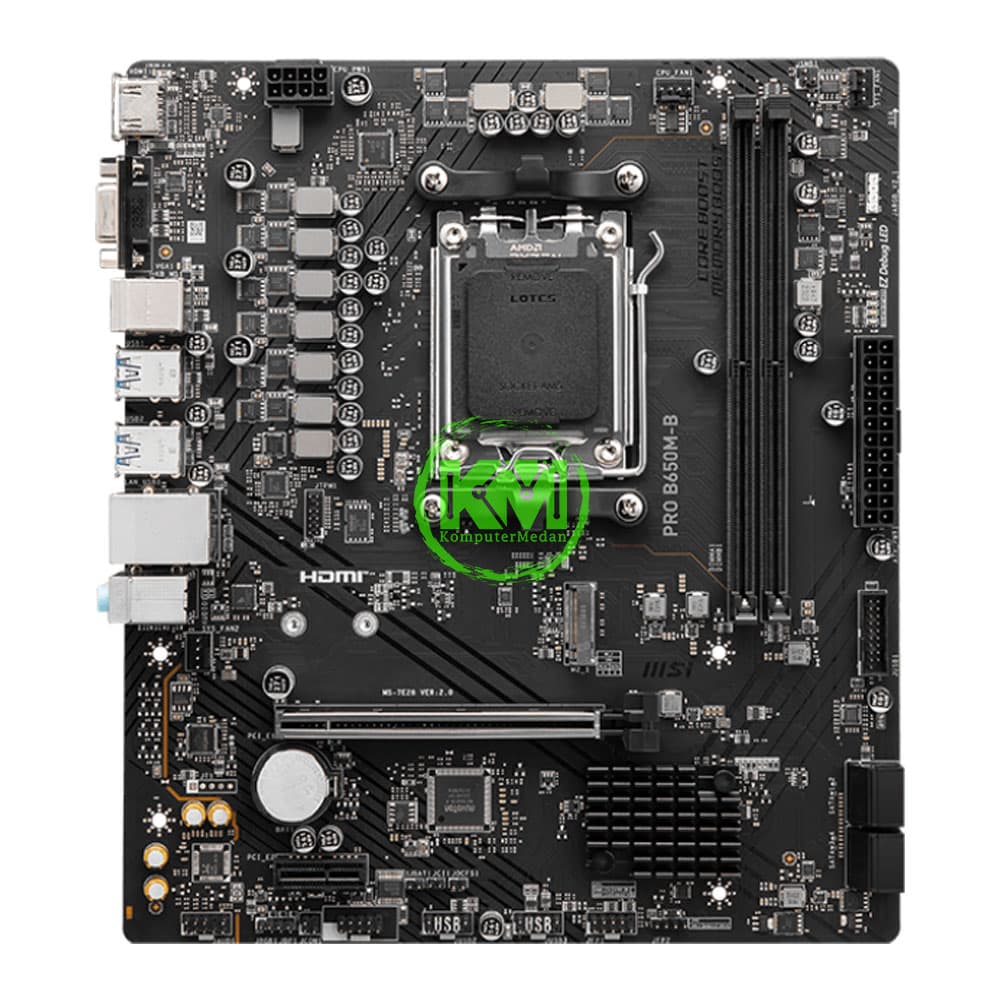

MSI PRO B650M-B (AMD) MOTHERBOARD
Fast shipping – All over Indonesia
100% Original Products- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors - Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC) - Core Boost : With premium layout and digital power design to support more cores and provide better performance - Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility - Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 - 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience - Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
PRODUCT DETAIL
MSI PRO B650M-B (AMD) MOTHERBOARD SPESIFIKASI: CHIPSET AMD B650 CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 MEMORY 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO ONBOARD GRAPHICS 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. SLOT 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) AUDIO Realtek® ALC897 Codec 7.1-Channel High Definition Audio STORAGE 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) LAN Realtek® RTL8125BG 2.5G LAN INTERNAL I/O 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports LED FEATURE 4x EZ Debug LED BACK PANEL PORTS -HDMI™ -VGA -Keyboard/Mouse -USB 3.2 Gen 1 5Gbps (Type-A) -LAN port -Audio connectors -USB 2.0 OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit PCB Info -mATX -215mmx243.84mm
