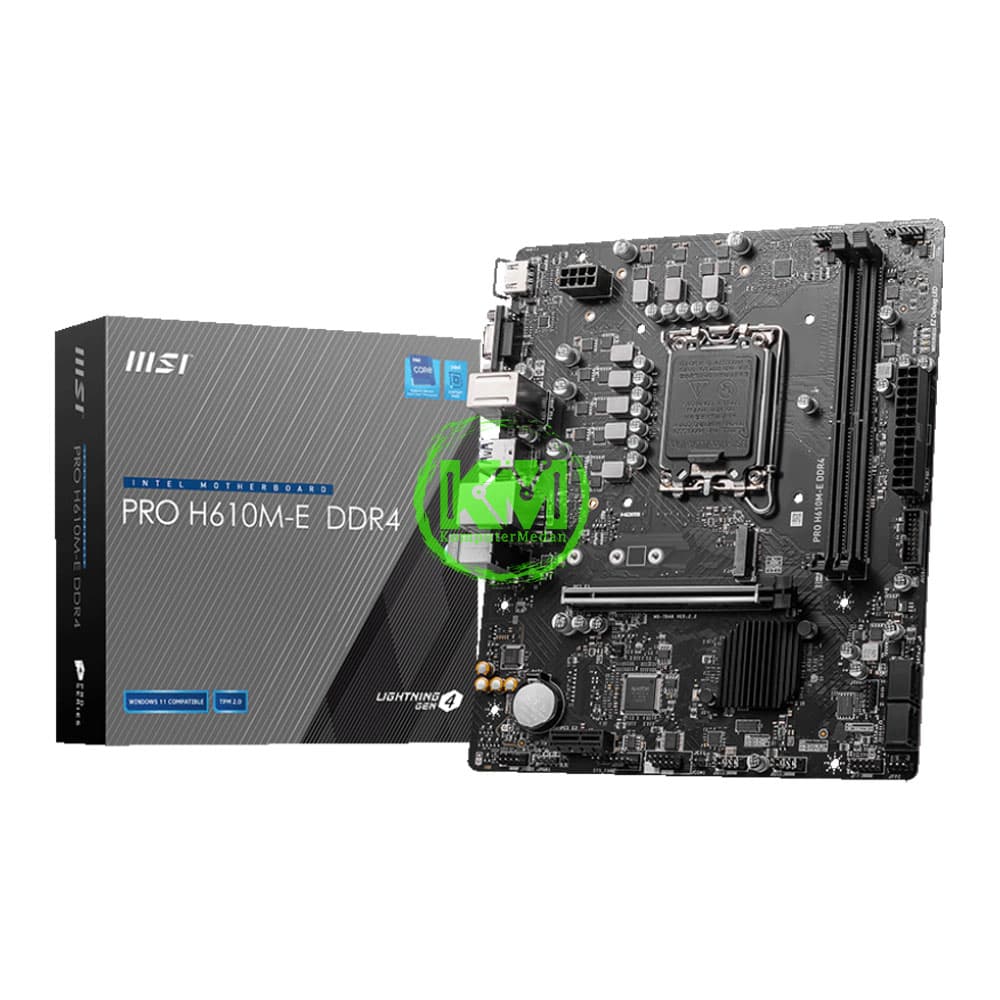

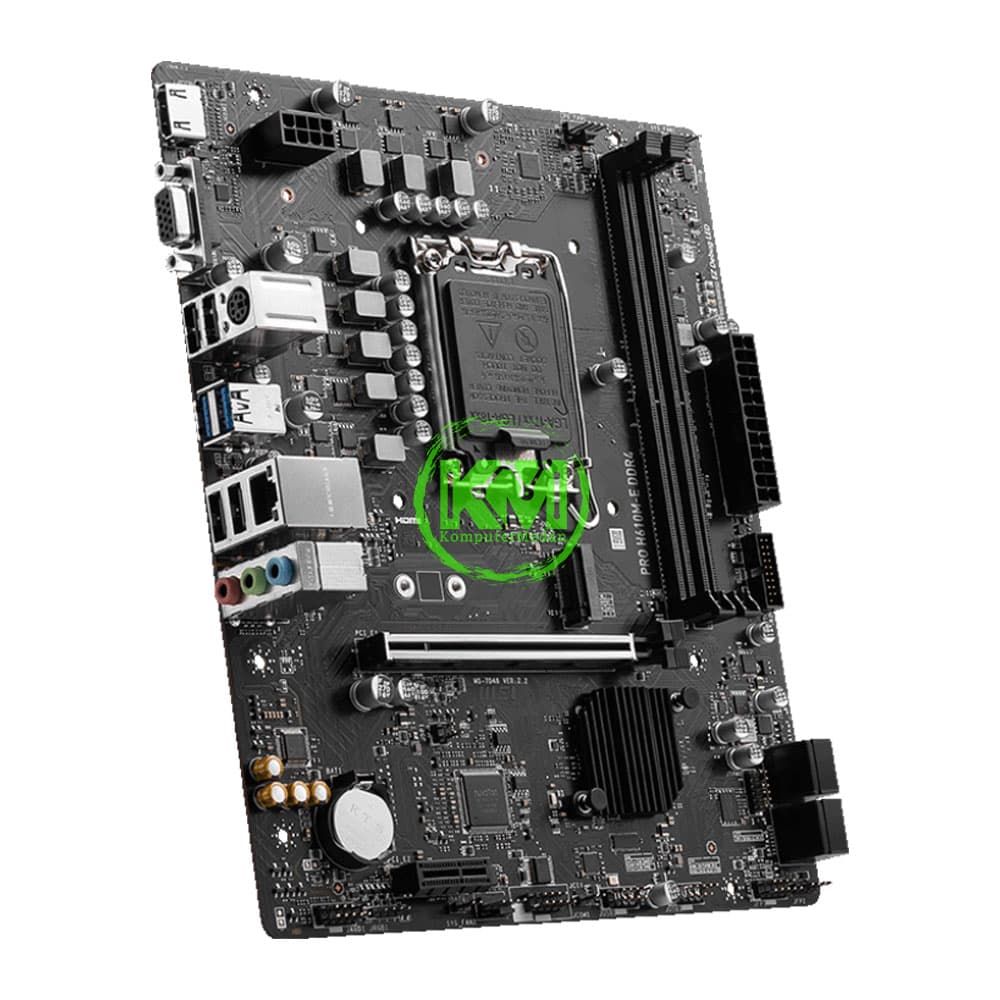

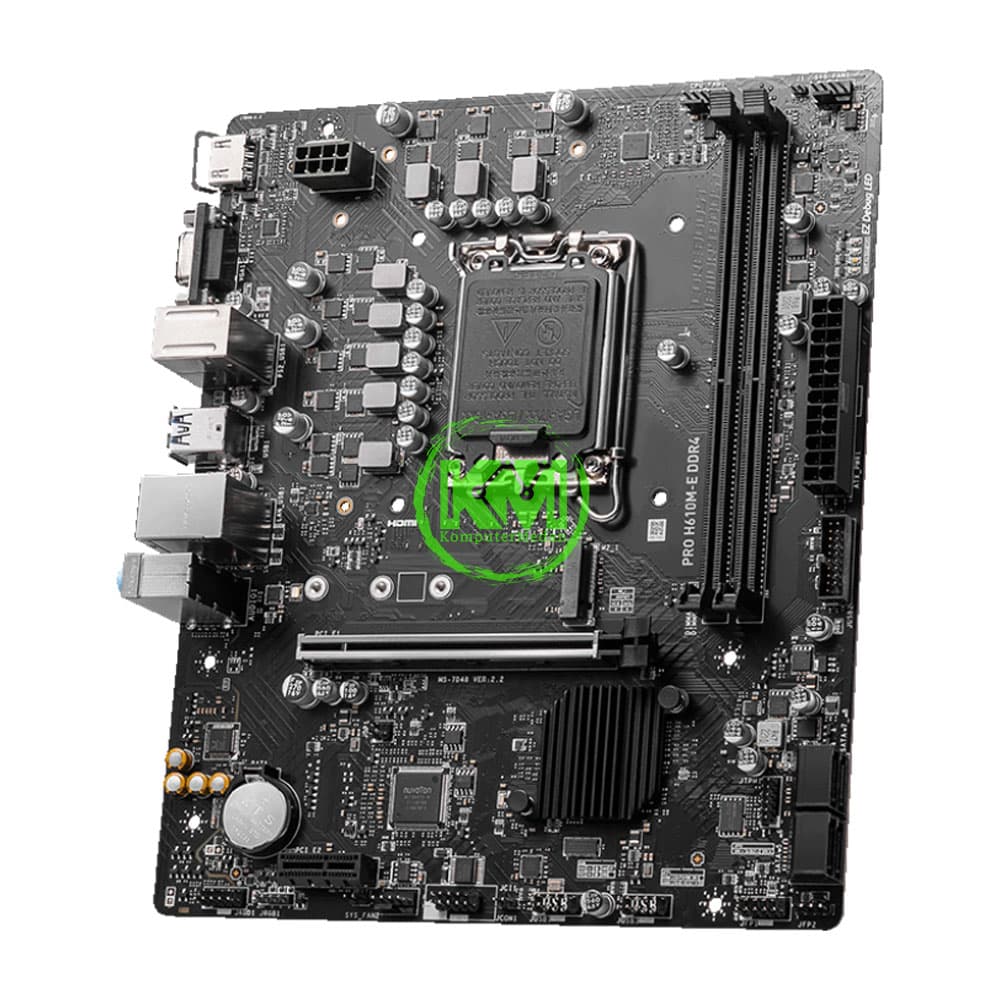

MSI PRO H610M-E DDR4 (INTEL) MOTHERBOARD
Fast shipping – All over Indonesia
100% Original Products- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket - Supports DDR4 Memory, up to 3200(MAX) MHz - Core Boost : With premium layout and digital power design to support more cores and provide better performance - Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility - Lightning Fast Experience: PCIe 4.0 - Audio Boost: Reward your ears with studio grade sound quality - Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
PRODUCT DETAIL
MSI PRO H610M-E DDR4 (INTEL) MOTHERBOARD SPESIFIKASI: Processor -Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors -Processor socket LGA1700 Chipset Intel® H610 Chipset Memory -2x DDR4 memory slots, support up to 64GB 1 -Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) -Supports Dual-Channel mode -Supports non-ECC, un-buffered memory Expansion Slot -1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 -1x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1 Onboard Graphics -1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz -1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. *Graphics specifications may vary depending on the CPU installed. SATA Ports -4x SATA 6Gb/s ports (From H610 chipset) M.2 SSD Slot -1x M.2 slot (Key M) (from H610 chipset) *Supports up to PCIe 3.0 x4 *Supports up to SATA 6Gb/s *Supports 2242/ 2260/ 2280 storage devices Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio LAN -1x Realtek® RTL8111H 1Gbps LAN controller Power Connectors -1x 24-pin ATX main power connector -1x 8-pin +12V power connector Internal USB Connectors -1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports -2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 ports Fan Connectors -1x 4-pin CPU fan connector -2x 4-pin system fan connectors System Connectors -1x Front panel audio connector -2x System panel connectors -1x Chassis Intrusion connector -1x TPM module connector -1x Serial port connector Jumpers -1x Clear CMOS jumper LED Features -1x 4-pin RGB LED connector -4x EZ Debug LED Back panel ports -HDMI™ -VGA -Keyboard / Mouse -USB 3.2 Gen 1 5Gbps Type-A -LAN port -Audio connector -USB 2.0 Dimensions M-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
