Motherboard

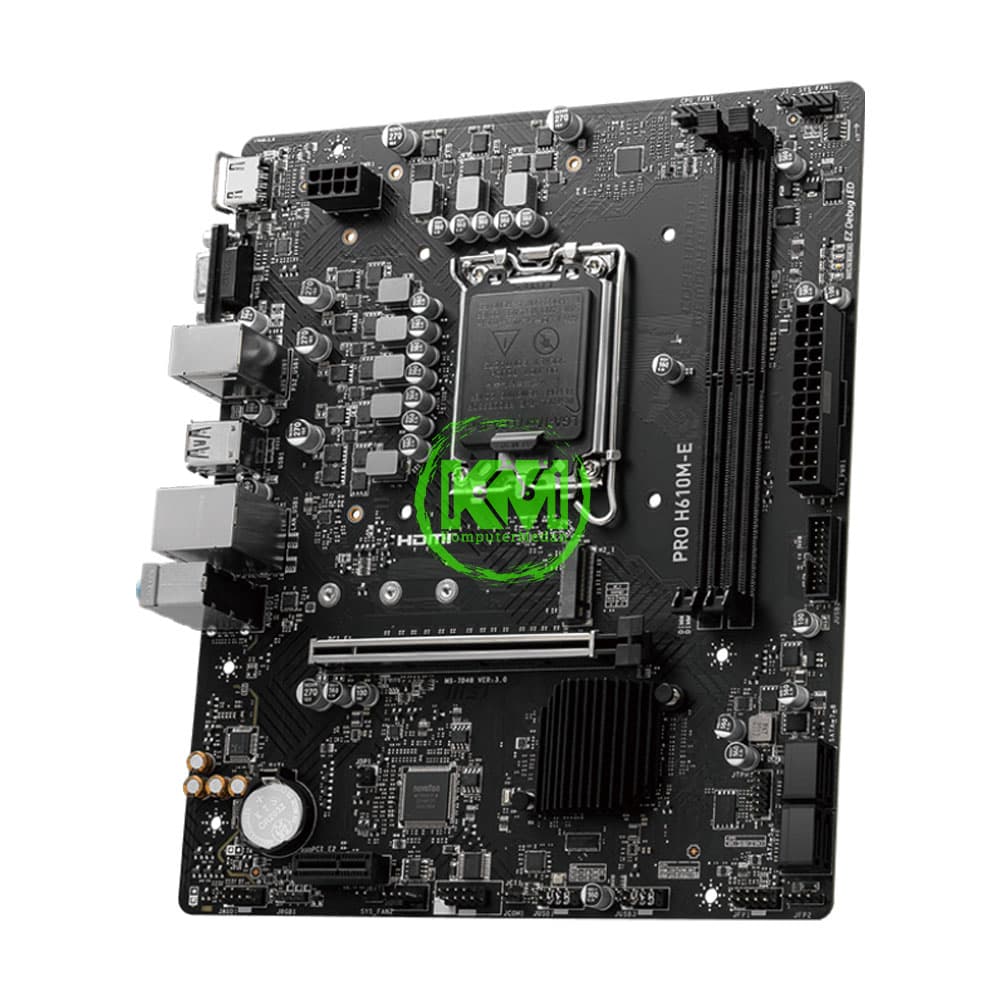

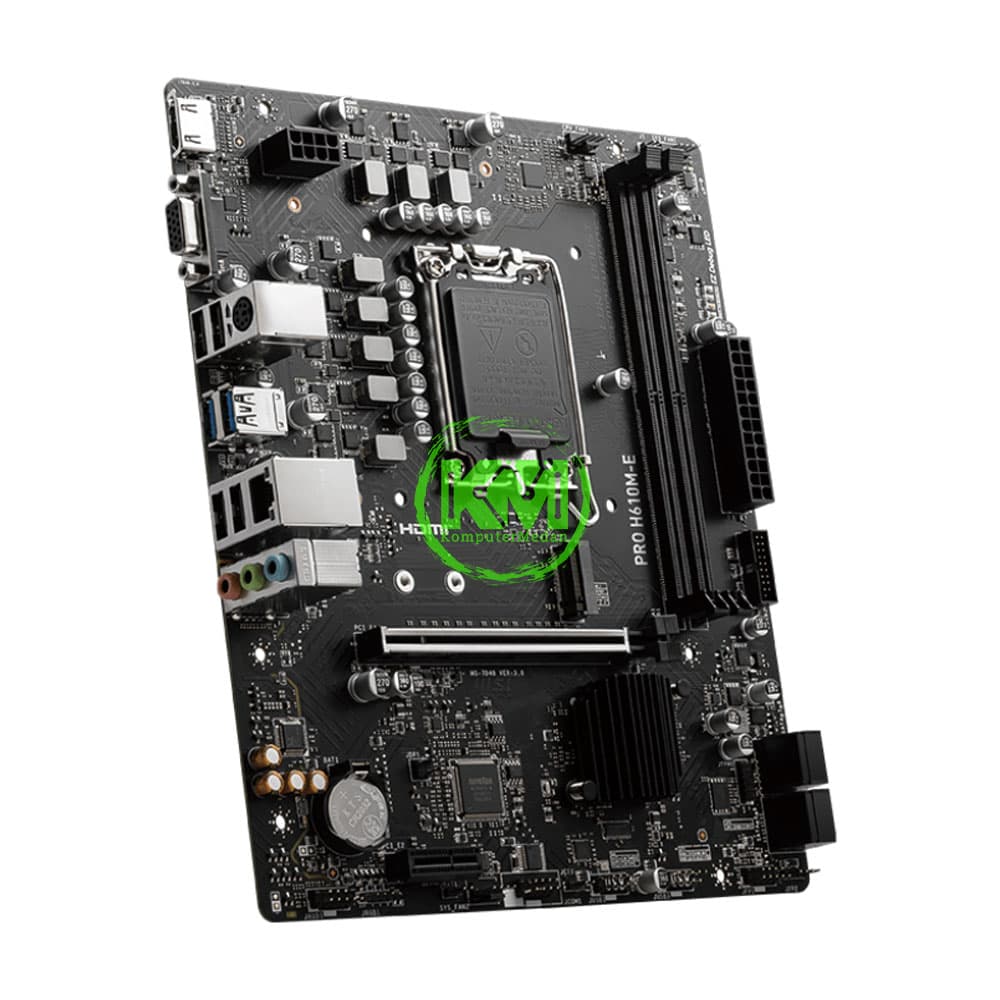

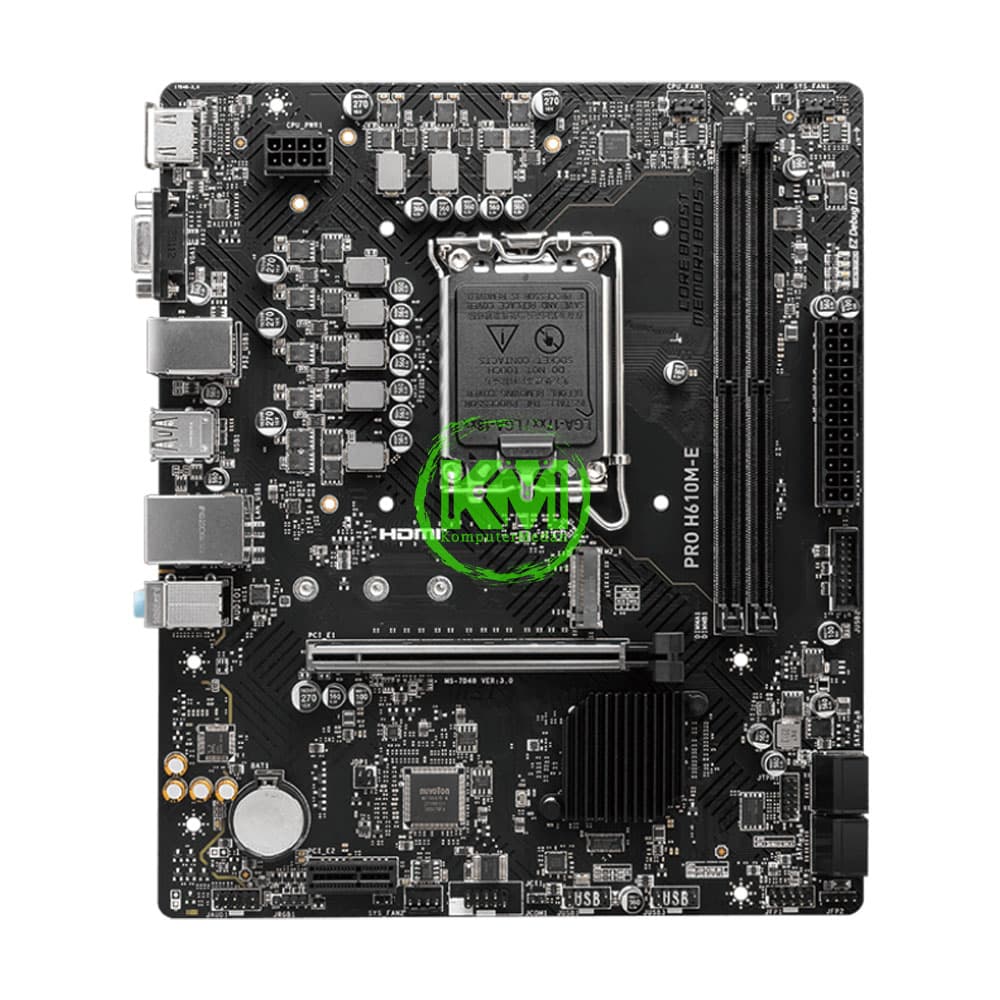

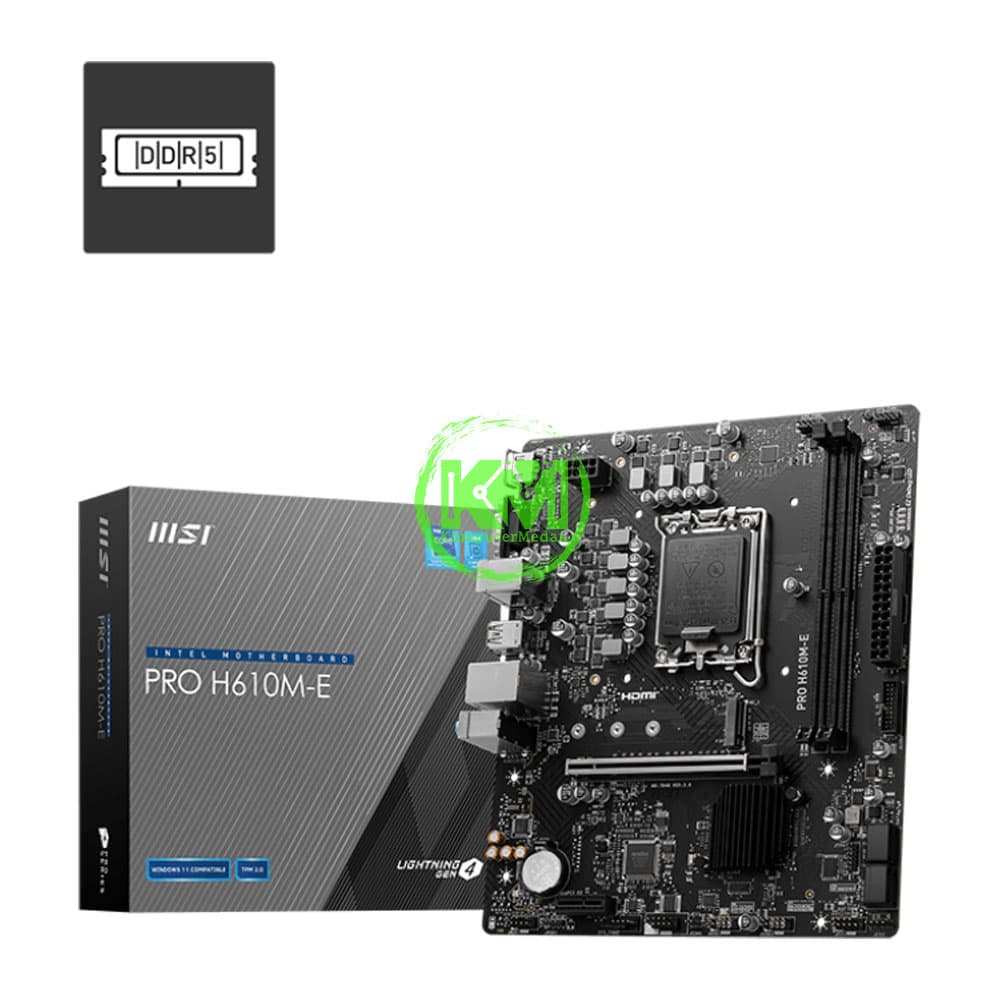

MSI PRO H610M-E DDR5 (INTEL) MOTHERBOARD
Fast shipping – All over Indonesia
100% Original Products- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket - Supports DDR5 Memory, up to 5600(MAX) MHz - Core Boost : With premium layout and digital power design to support more cores and provide better performance - Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility - Lightning Fast Experience: PCIe 4.0 - Audio Boost: Reward your ears with studio grade sound quality - Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
PRODUCT DETAIL
MSI PRO H610M-E DDR5 (INTEL) MOTHERBOARD SPESIFIKASI: Chipset INTEL H610 CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 Memory -2x DDR5, Maximum Memory Capacity 96GB -Memory Support DDR5 5600 MHz (by JEDEC & POR) -Supports Intel® XMP 3.0 OC -Supports Dual-Controller Dual-Channel mode -Supports non-ECC, un-buffered memory Onboard Graphics -1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* -1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot - 1x PCI-E x16 slot - 1x PCI-E x1 slot - PCI_E1 Gen PCIe 4.0 supports up to (From CPU) - PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio Storage - 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices - 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. USB - 4x USB 2.0 (Rear) - 4x USB 2.0 (Front) - 2x USB 5Gbps Type A (Rear) - 2x USB 5Gbps Type A (Front) LAN Realtek® RTL8111H Gigabit LAN Internal IO - 1x Power Connector(ATX_PWR) - 1x Power Connector(CPU_PWR) - 1x CPU Fan - 2x System Fan - 2x Front Panel (JFP) - 1x Chassis Intrusion (JCI) - 1x Front Audio (JAUD) - 1x Com Port (JCOM) - 1x RGB LED connector(JRGB) - 1x TPM pin header(Support TPM 2.0) - 4x USB 2.0 ports - 2x USB 5Gbps Type A ports LED FEATURE 4x EZ Debug LED BACK PANEL PORTS - HDMI™ - VGA - Keyboard / Mouse - USB 3.2 Gen 1 5Gbps (Type-A) - LAN port - Audio Connectors - USB 2.0 - USB 2.0 OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
