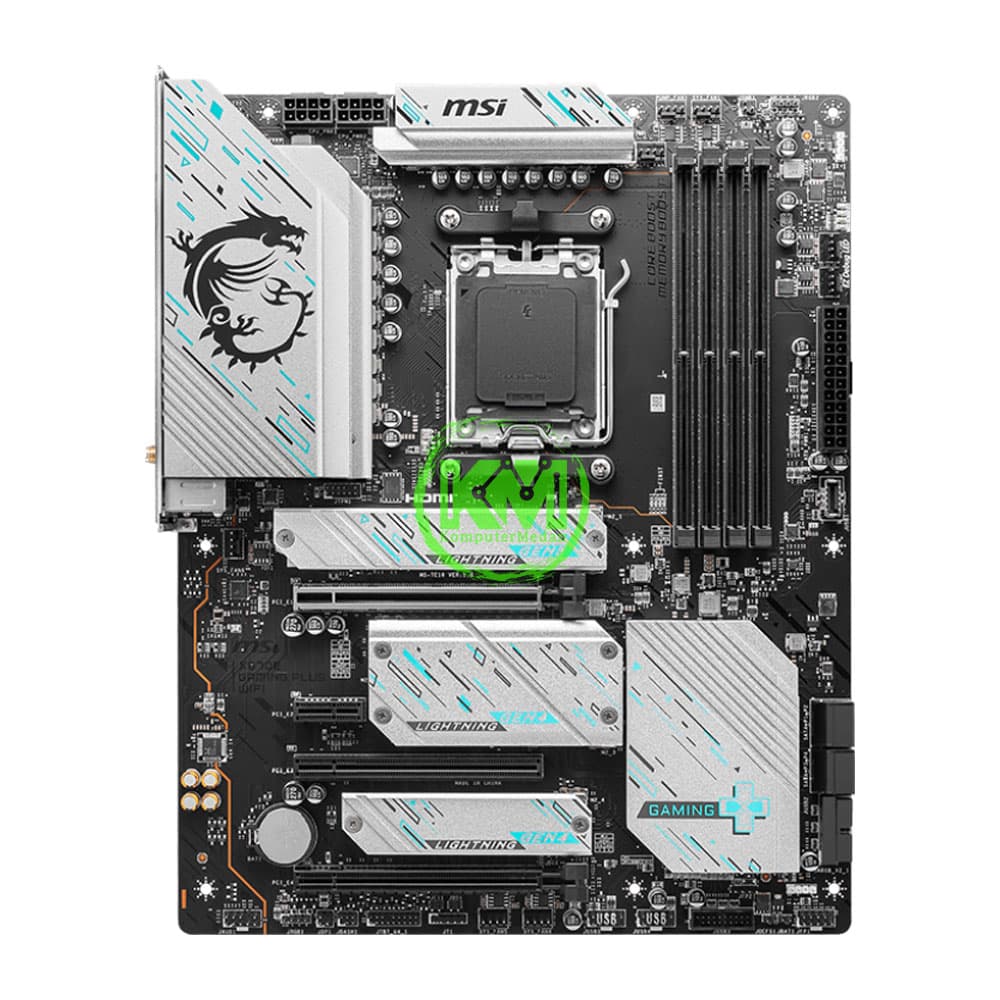

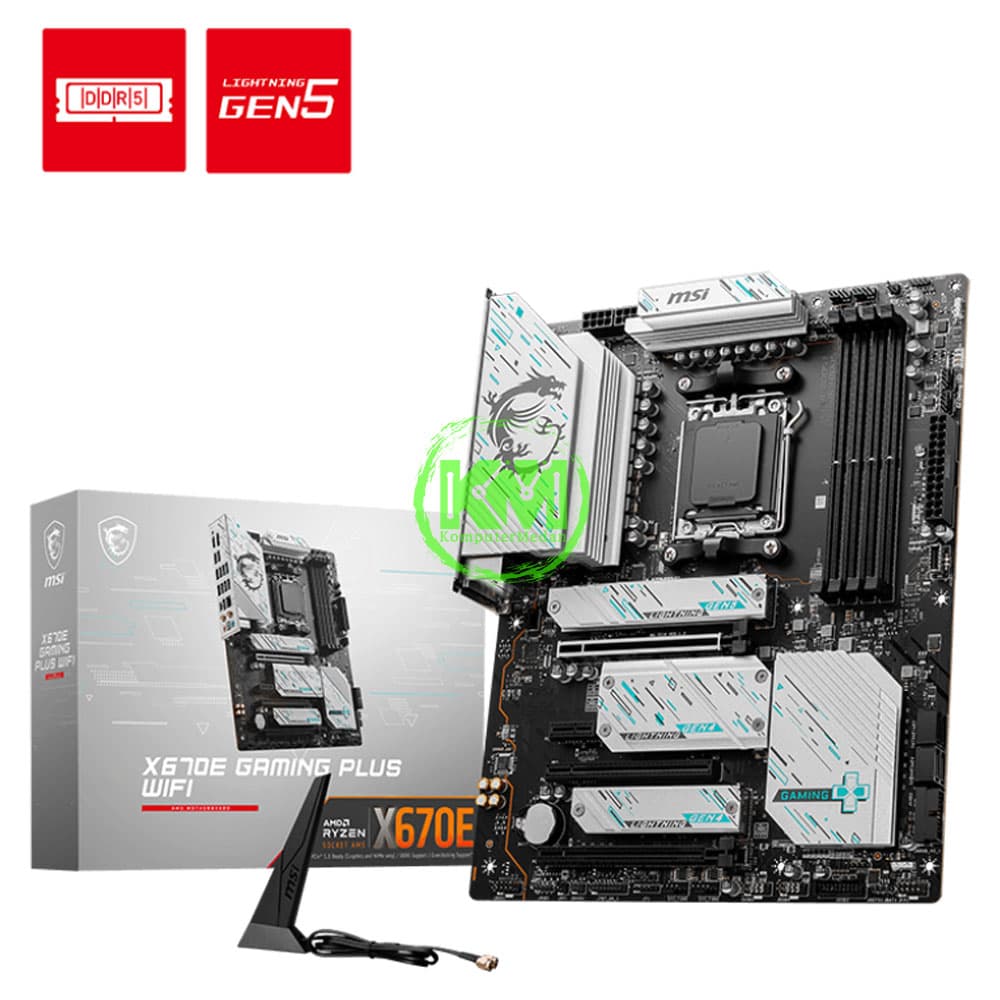

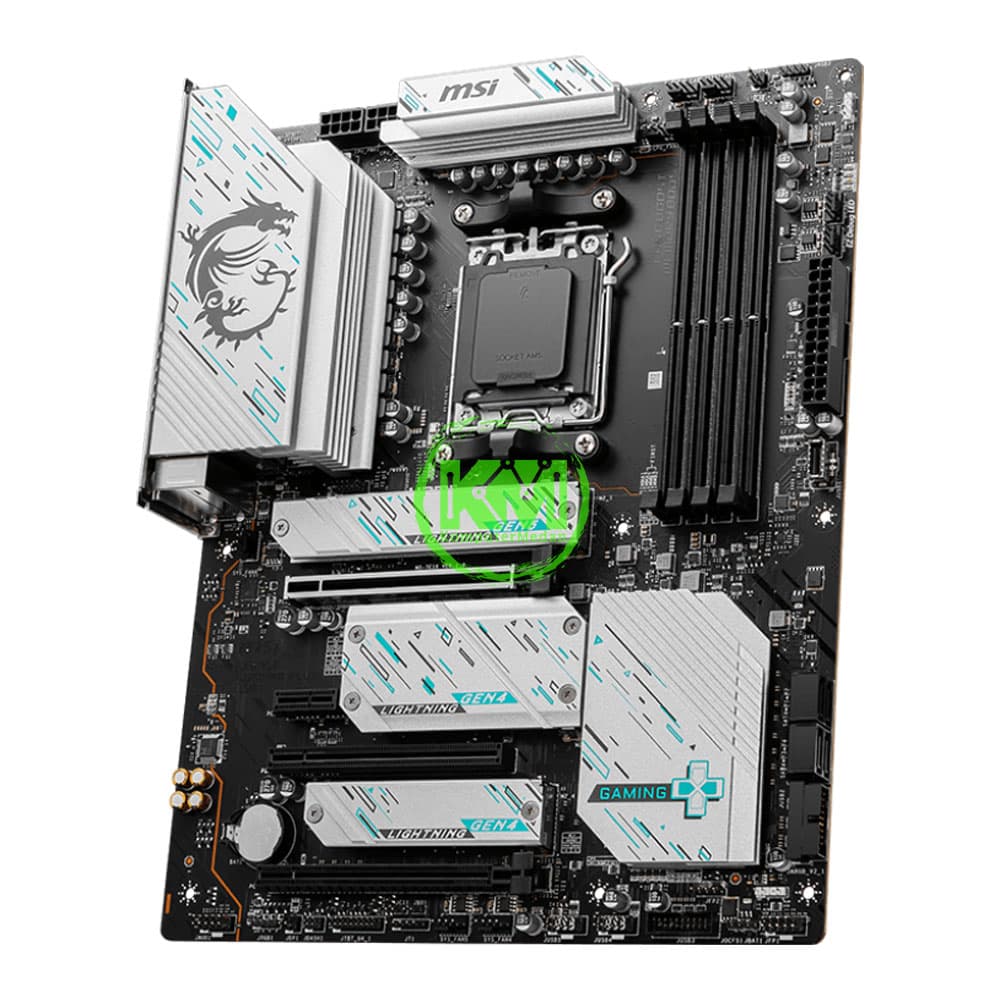

MSI X670E GAMING PLUS WIFI (AMD) MOTHERBOARD

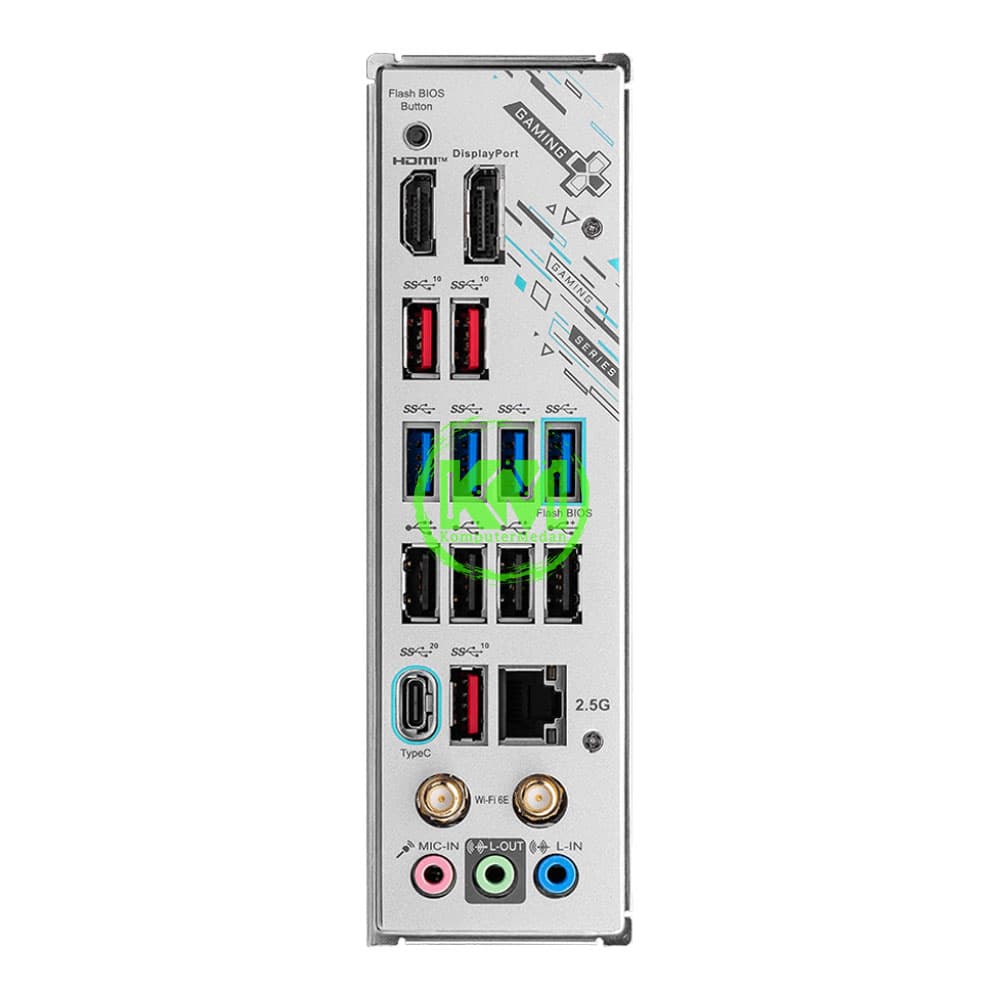

MSI X670E GAMING PLUS WIFI (AMD) MOTHERBOARD SPESIFIKASI: CHIPSET AMD X670 CPU AMD RyzenTM Supports 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7000(OC)/ 7000(OC)/ 6800(OC)/ 6400(OC)/ 6200(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5000(OC)/ 5200(OC)/5000(OC)/4800(OC)/4800(JEC)/ Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Non-ECC support, un-buffered memory Supporting AMD EXPOTM ONBOARD GRAPHICS 1x HDMITM Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort DP Support 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. SLOTS 3x PCI-E x16 slot (Qty) Supports x16/x1/x4 • Supports x16/x1/x4 (For RyzenTM 9000/ 7000 Series processors) • Supports x8/x1/x4 (For RyzenTM 8700/ 8600/ 8400 Series processors) • Supports x4/x1/x4 (For RyzenTM 8500/ 8300 Series processors) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) AUDIO Realtek® ALC897 Codec 7.1-Channel High Definition Audio STORAGE 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 supports, 22110/2280 devices M.2_2 Source (From CPU) up supports to PCIe 4.0 x4 supports, 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 supports , 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 support , 2280/2260 devices 4x SATA 6G (Qty) • M2_2 support PCIe 4.0 x2 speed when RyzenTM 8500/ 8300 Series processor is installed RAID •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices • RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *RAID 5 configuration is only supported by RyzenTM 9000 series processors. *RAID 10 for M.2 NVMe storage devices are only supported by RyzenTM 9000/7000 series processors. USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) LAN Realtek® RTL8125BG 2.5Gbps LAN INTERNAL I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz,80MHz,160MHz bandwidth in 2.4GHz/5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Bluetooth Supports ® 5.3** * Wi-Fi 6E 6GHz may be dependent on every country's regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. LED FEATURE 4x EZ Debug LED BACK PANEL PORTS -DisplayPort -USB 3.2 Gen 2 10Gbps (Type-A) -USB 3.2 Gen 1 5Gbps (Type-A) -USB 2.0 (Type-A) -2.5G LAN -Flash BIOS Button -HDMITM -USB 3.2 Gen 2x2 20Gbps (Type-C) -Wi-Fi / Bluetooth -Audio Connectors OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit PCB INFO ATX 243.84mmx304.8mm
