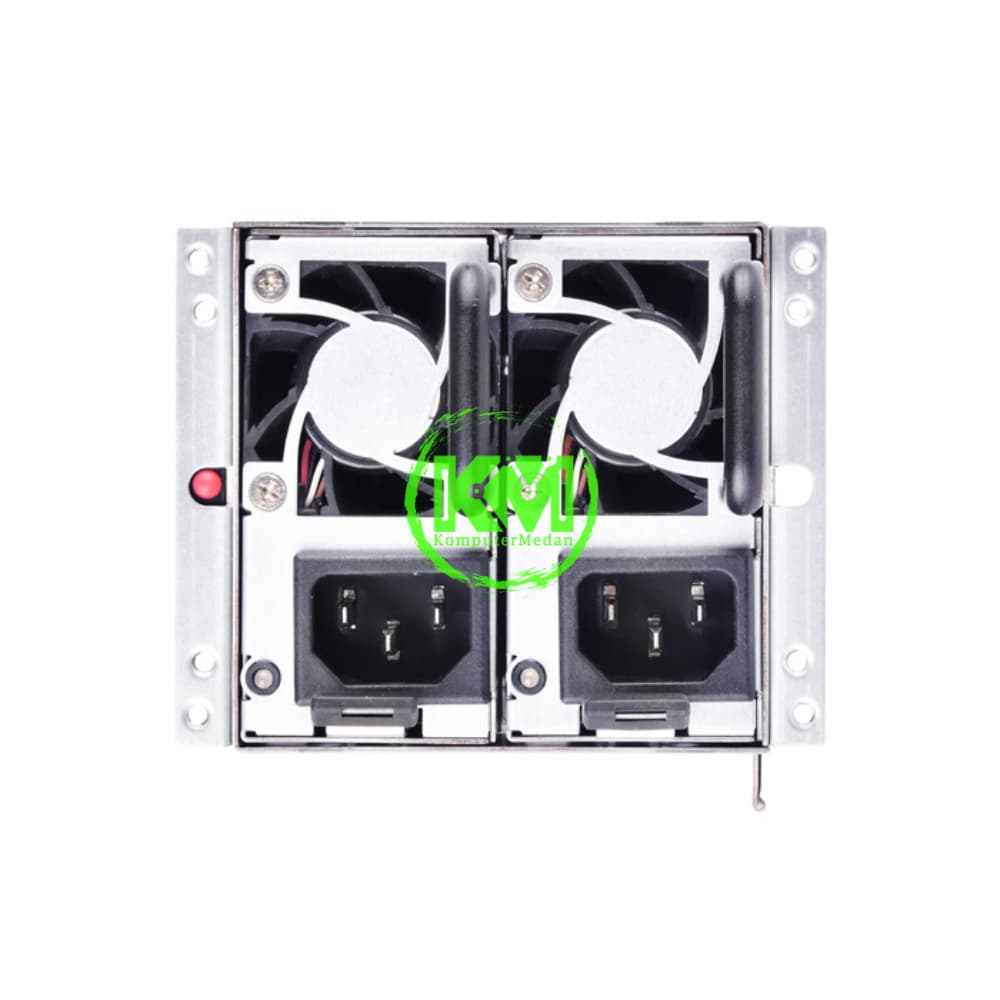

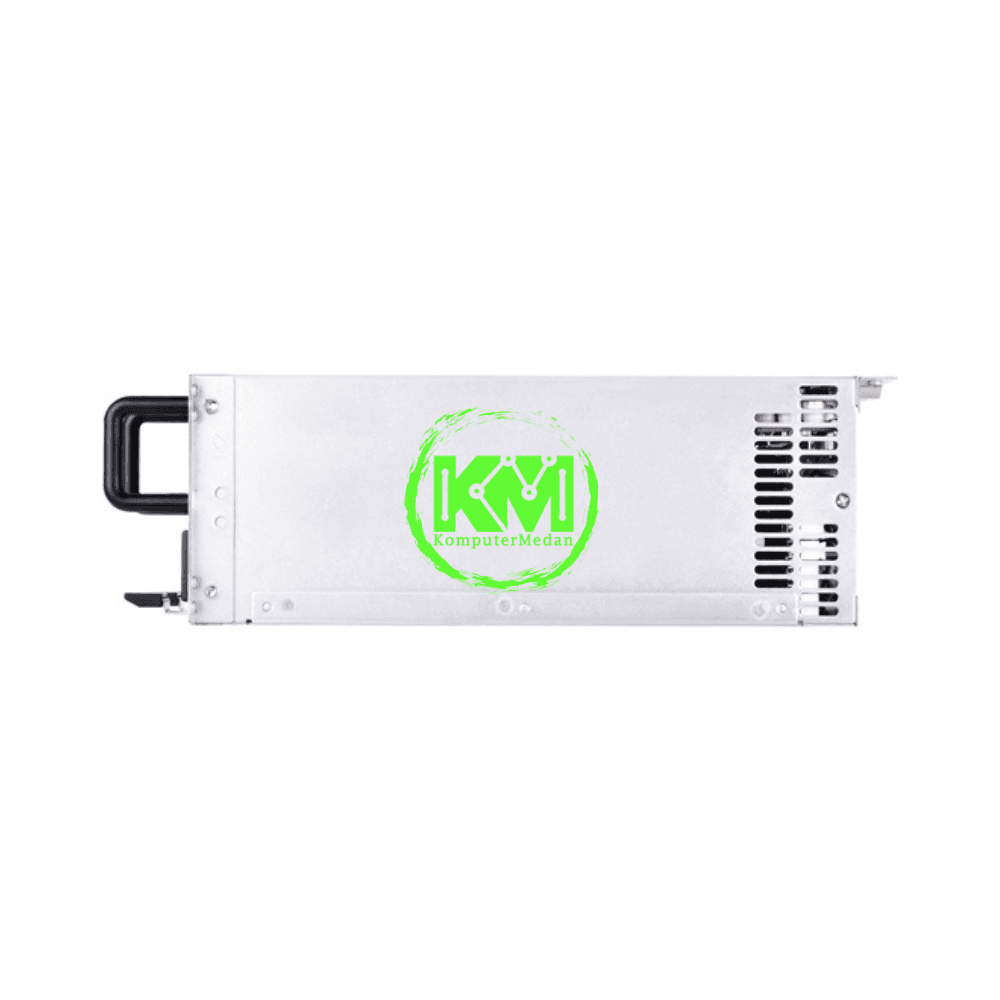

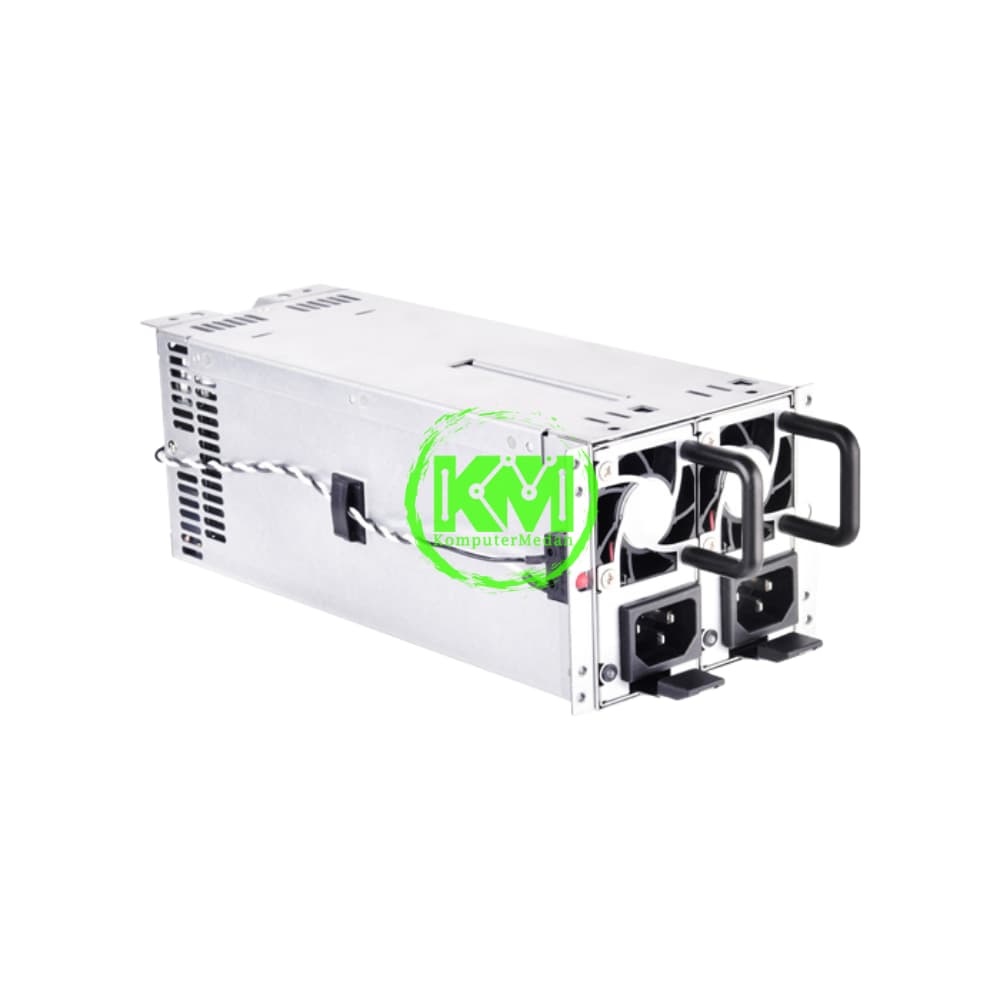

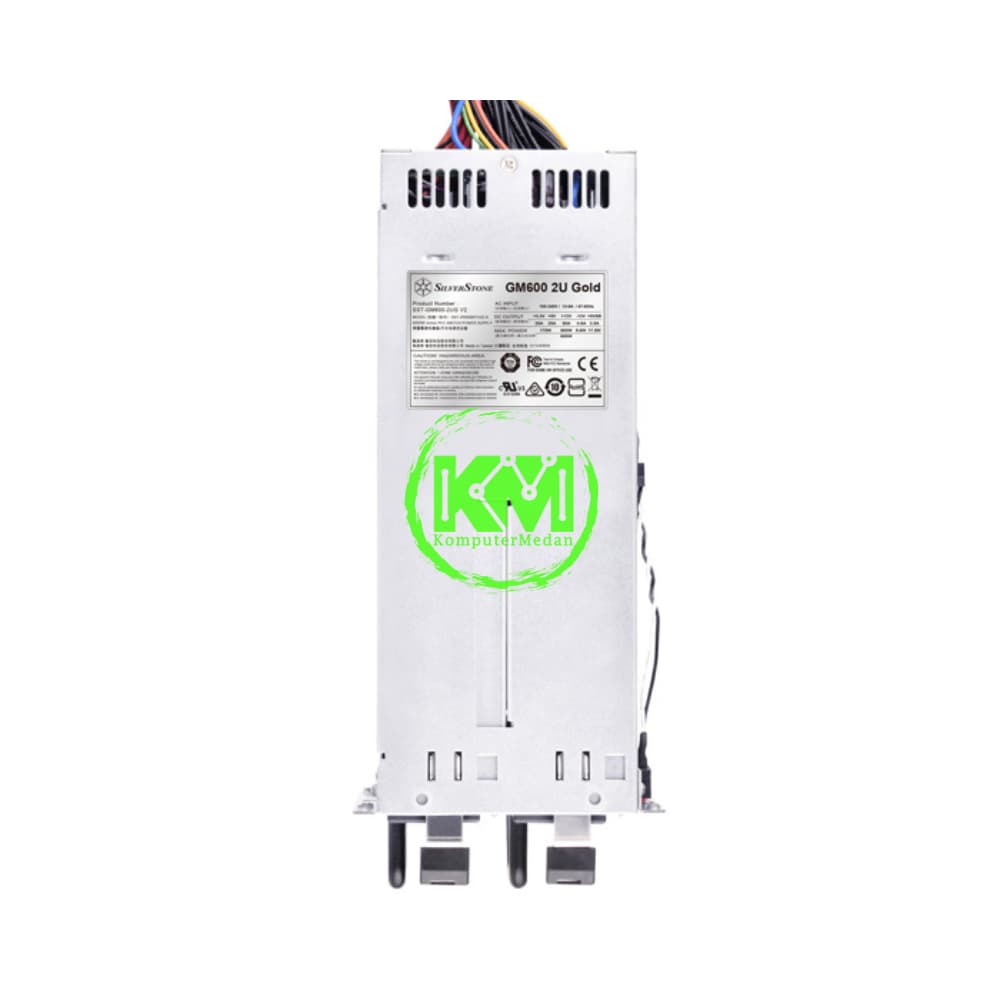

REDUNDANT 600W GOLD FOR EN4808 POWER SUPPLY

REDUNDANT 600W GOLD FOR EN4808 POWER SUPPLY SPESIFIKASI FORM FACTOR 1+1 2U Redundant MATERIAL Aluminum casing MTBF >100,000 hours OPERATING TEMP 0°C ~ 45°C POWER OUTPUT Max DC Output: 600W (600W+600W redundant configuration) Efficiency: Cybenetics Gold Certified (≥87% & <89% overall) Power Density: 803W per liter Combined +3.3V & +5V: 170W Combined +12V: 600W Load Range: +3.3V: 25A (Min: 1.0A) +5V: 25A (Min: 1.0A) +12V: 50A (Min: 1.0A) +5VSB: 3.5A (Min: 0.1A) -12V: 0.8A (Min: 0A) INPUT & FEATURES Input Voltage: 90 ~ 264 Vrms (Full Range) Input Frequency: 47Hz ~ 63Hz PFC: Active PFC (PF>0.9 at full load) Protection: Over Current (OCP), Over Voltage (OVP), Short Circuit (SCP), Over Temperature (OTP) PMBus: Supports PMBus 1.2 Hot-swappable: Yes, with pull-out handle bars CONNECTORS 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connectors 2 x 8 / 6-Pin PCIe connectors 6 x SATA connectors 9 x 4-Pin Peripheral connectors 1 x 4-Pin Floppy connector 1 x 2-Pin TTL/PW1/PW2 connectors (system management) COOLING & DIMENSIONS Cooling System: 40mm PWM fans Fan Speed: 22,000 RPM (Max) Noise Level: 62.5 dBA maximum Dimensions (w/o bracket): 84mm (W) x 82mm (H) x 217mm (D) Weight: 3.13 kg
