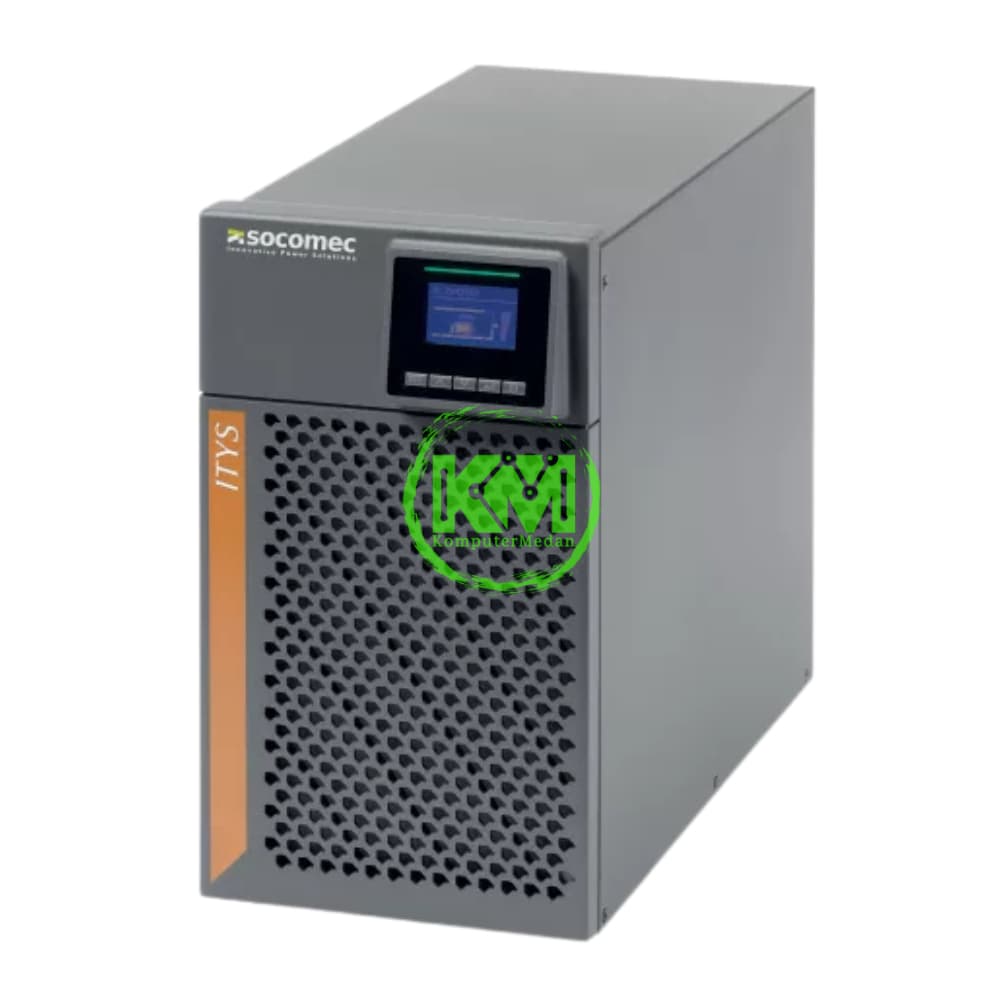

SOCOMEC ITY3-TW020B | ITYS 2kVA 230V ONL UPS

SOCOMEC ITY3-TW020B | ITYS 2kVA 230V ONL UPS SPESIFIKASI: ETIM - ELECTRICAL CHARACTERISTICS Input voltage [V]: 160..300 Primary frequency [Hz]: 40..70 Number of phases primary: 1 Output voltage [V]: 200..240 Secondary frequency [Hz]: 50..60 Output effective power [W]: 2000 Output apparent power [VA]: 2000 Number of phases secondary: 1 SNMP: Yes Voltage type: AC Max. voltage distortion output (linear load) [%]: 1 Output power factor: 1 ETIM - MECHANICAL CHAARACTERISTICS Height [mm]: 322 Width [mm]: 192 Depth [mm]: 428 Weight [kg]: 26 Construction type: Freestanding model Input connection: C20 Number of output connections C13: 8 ETIM - TECHNICAL FEATURES USB interface: Yes Bridging time full load [min]: 11.1 Suitable for network-management: Yes USV- technology: Online Overall efficiency [%]: 93 Efficiency in eco-mode [%]: 98 Potential free switch contact: Yes Auto shut down function: Yes LOGISTICS GTIN/EAN: 8027122745918 Customs numbeR: 8504409590 Price unit: PC Weight of the packing unit [kg]: 26 Length of the packing unit [m]: 0.322 Width of the packing unit [m]: 0.428 Depth of the packing unit [m]: 0.192 TECHNICAL CHARACTERISTICS Height [mm]: 322 Width [mm]: 192 Depth [mm]: 428 Weight [kg]: 26 In/out: 1/1 Output voltage: 230 Rated frequency: 50/50 Sn [kVA]: 2 Pn [kW]: 2 Conf: C1 Input voltage: 230 Rate (min): 2 Rate (max): 2 Life Time: 03-05 Typical Backup Time [min]: 15 Configuration: UPS Single Unit(s) with Bypass
