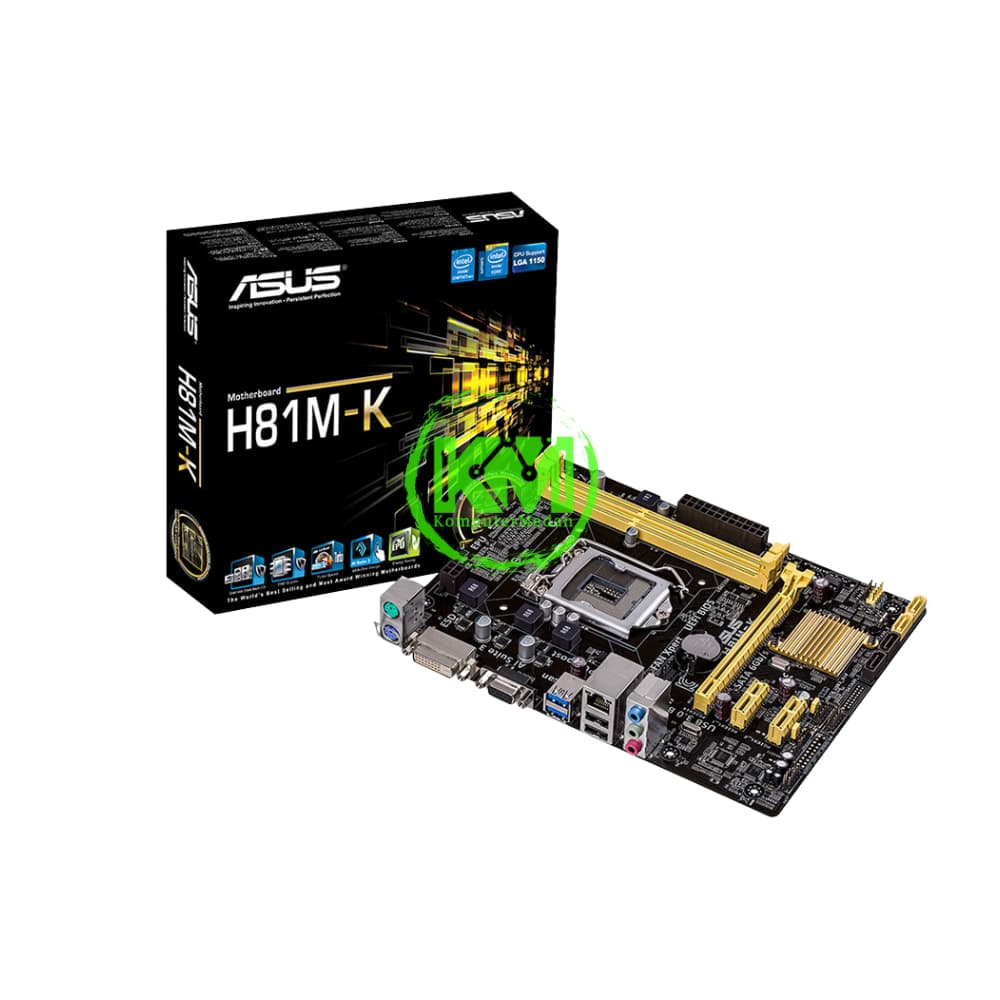

ASUS H81M-K (INTEL) MOTHERBOARD

ASUS H81M-K (INTEL) MOTHERBOARD SPESIFIKASI : CPU * Refer to www.asus.com for CPU support list.,Supports Intel® 22nm CPU,Intel® Socket 1150for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors,Supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. CHIPSET Intel® H81 MEMORY * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory,* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.,* Hyper DIMM support is subject to the physical characteristics of individual CPUs.,Supports Intel® Extreme Memory Profile (XMP),Dual Channel Memory Architecture GRAPHIC Multi-VGA output support: DVI/RGB port, - Supports RGB with a maximum resolution of 1920 x 1200 @ 60 Hz, Maximum shared memory of 1024 MB, Integrated Graphics Processor, - Supports DVI with a maximum resolution of 1920 x 1200 @ 60 Hz, Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ EXPANSION SLOT 1 x PCIe x16,2 x PCIe 2.0 x1 STORAGE 2 x SATA 6Gb/s port(s), yellow,2 x SATA 3Gb/s port(s), dark brown,Intel® H81 chipset : ,Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1 LAN Realtek® 8111G, 1 x Gigabit LAN Controller(s) AUDIO Realtek® ALC8878-Channel High Definition Audio CODEC *2,- Supports : Jack-detection, Front Panel Jack-retasking PORT USB Intel® H81 chipset :,2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue),6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) SPECIAL FEATURES - Network iControl,- ASUS EZ Flash 2,- USB 3.0 Boost,- Disk Unlocker,- Anti-Surge,- GPU Boost,- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface,- Stylish Fanless Design Heat-sink solution,- ASUS Fan Xpert,ASUS EPU :,- EPU,ASUS Exclusive Features :,- AI Suite 3,- Ai Charger,ASUS Quiet Thermal Solution :,ASUS EZ DIY :,- ASUS CrashFree BIOS 3,ASUS Q-Design :,- ASUS Q-Slot OPERATING SYSTEM SUPPORT Windows® 8,Windows® 7 REAR I/O PORTS 2 x USB 3.1 Gen 1 (blue),1 x DVI,1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),1 x D-Sub,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s) I/O INTERNAL 2 x SATA 3Gb/s connector(s),2 x SATA 6Gb/s connector(s),1 x Chassis Fan connector(s) (1 x 4-pin),1 x Front panel connector(s),1 x Internal speaker connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s) ACCESSORIES User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s) BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information MANAGEMENT SKILLS WfM 2.0, DMI 2.0, WOL by PME, PXE SUPPORT DISC Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) FORM FACTOR 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm ),uATX Form Factor
