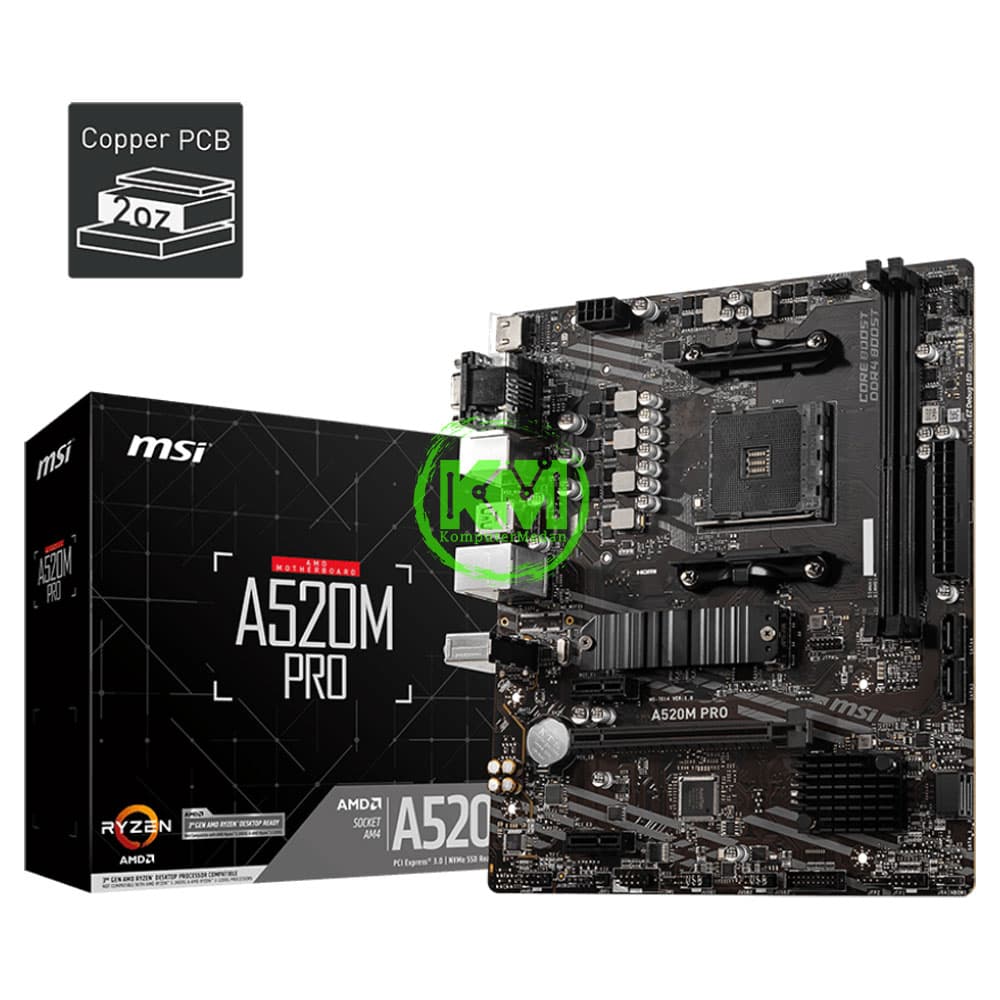

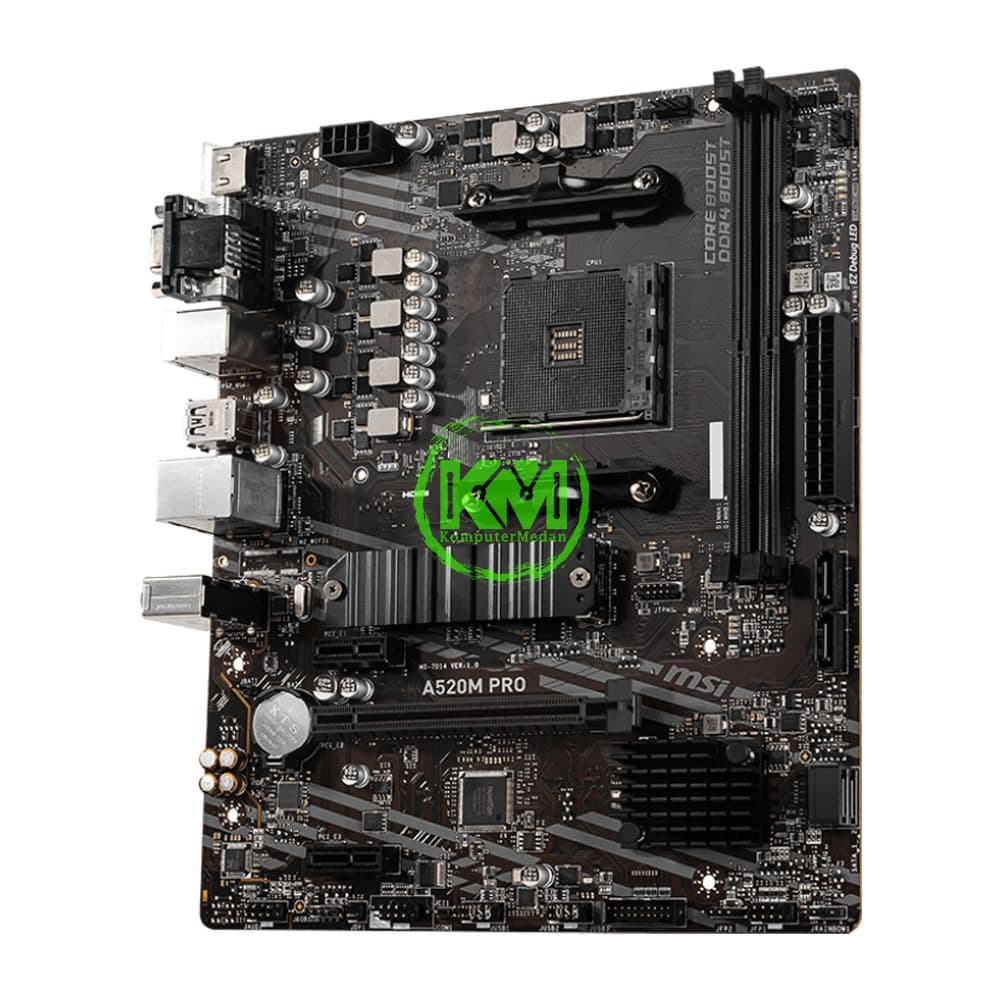

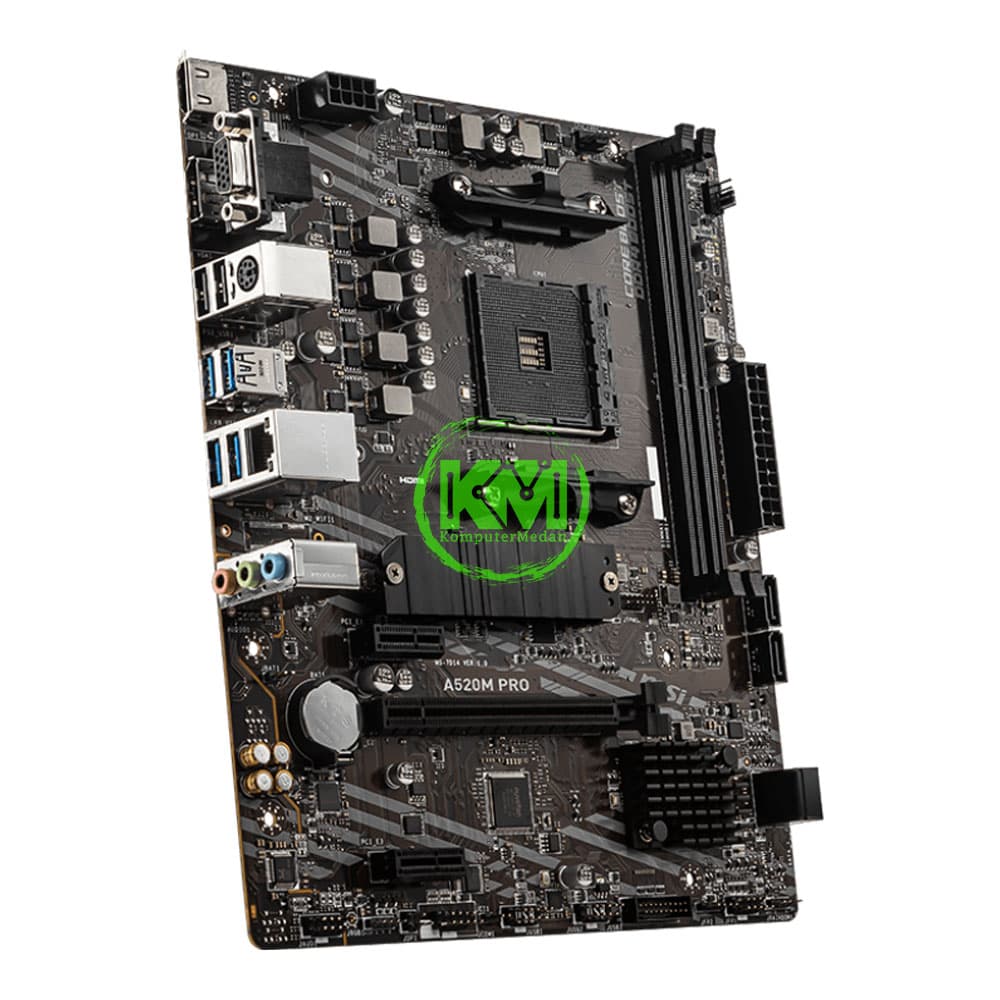

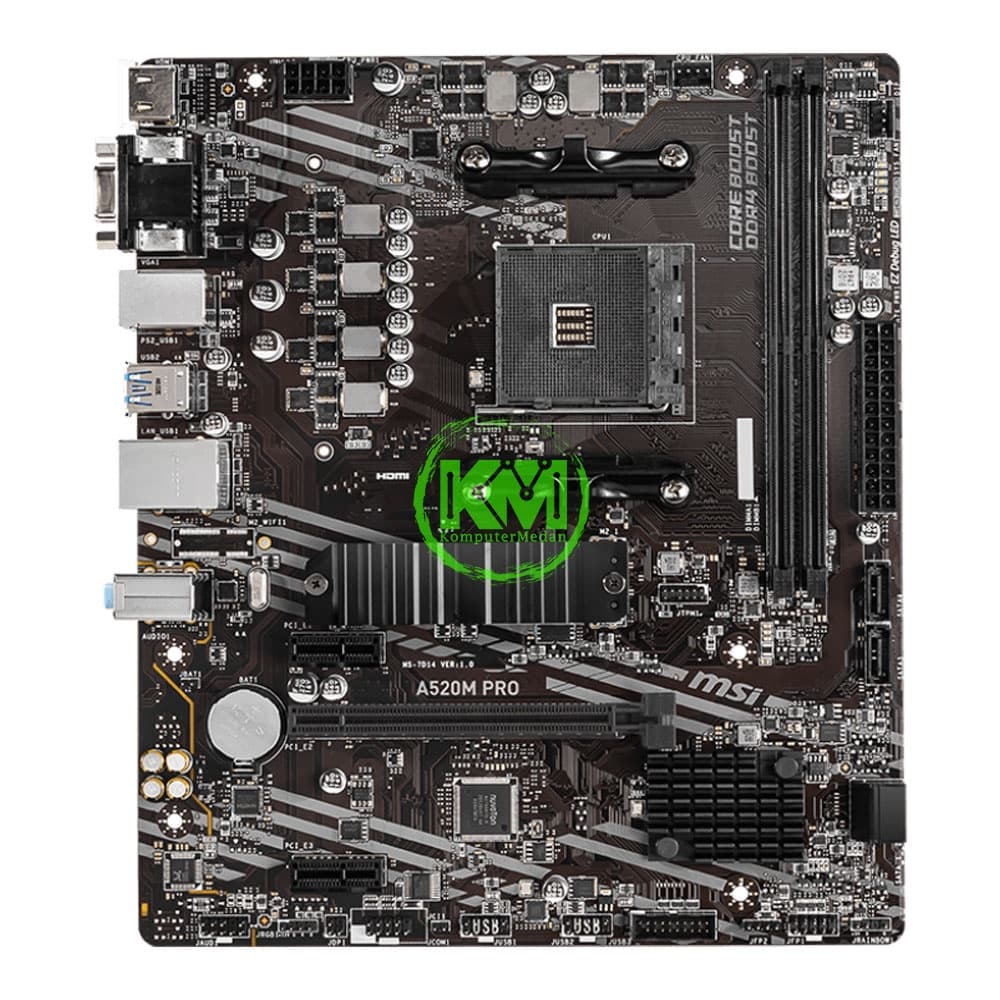

MSI A520M PRO (AMD) MOTHERBOARD
Fast shipping – All over Indonesia
100% Original Products- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors - Supports DDR4 Memory, up to 4600(OC) MHz - Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs - M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster - Core Boost: With premium layout and digital power design to support more cores and provide better performance - DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability - 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability - Audio Boost: Reward your ears with studio grade sound quality - Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
PRODUCT DETAIL
MSI A520M PRO (AMD) MOTHERBOARD SPESIFIKASI: CPU Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors CHIPSET AMD A520 Chipset MEMORY -2x DDR4 memory slots, support up to 64GB ~Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC ~Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE *1DPC 1R max speed 4600 MHz *1DPC 2R max speed 3866 MHz -Dual channel memory architecture -Supports non-ECC UDIMM memory -Supports ECC UDIMM memory (non-ECC mode) -Supports un-buffered memory EXPANSION SLOT 1x PCIe 3.0 x16 slot (From AMD processor) Supports x16 speed with Ryzen™ 5000, 5000G, 4000G and 3000 processors Supports x8 speed with Ryzen™ 3000G processors Supports x4 speed with AMD® Athlon™ with Radeon Graphics processors 2x PCIe 3.0 x1 slots ONBOARD GRAPHICS 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160@60Hz Support HDCP 1.4 & 2.3 1x DisplayPort 1.4 port, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 16GB STORAGE AMD A520 Chipset -4x SATA 6Gb/s ports -1x M.2 slot (From AMD processor, Key M) *Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors *Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors *Supports 2242/ 2260/ 2280 storage devices RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices USB -AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) -AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel AUDIO -Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio LAN 1x Realtek® RTL8111H LAN controller INTERNAL CONNECTOR 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector 1x Clear CMOS jumper Back panel ports -VGA -Keyboard / Mouse -LAN port -HDMI™ -DisplayPort -USB 2.0 Ports -USB 3.2 Gen 1 5Gbps Type-A -USB 3.2 Gen 1 5Gbps Type-A -Audio Connectors B550M PRO-VDH WIFI Dimensions M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm) MOUNTING 6 mounting holes
