Motherboard

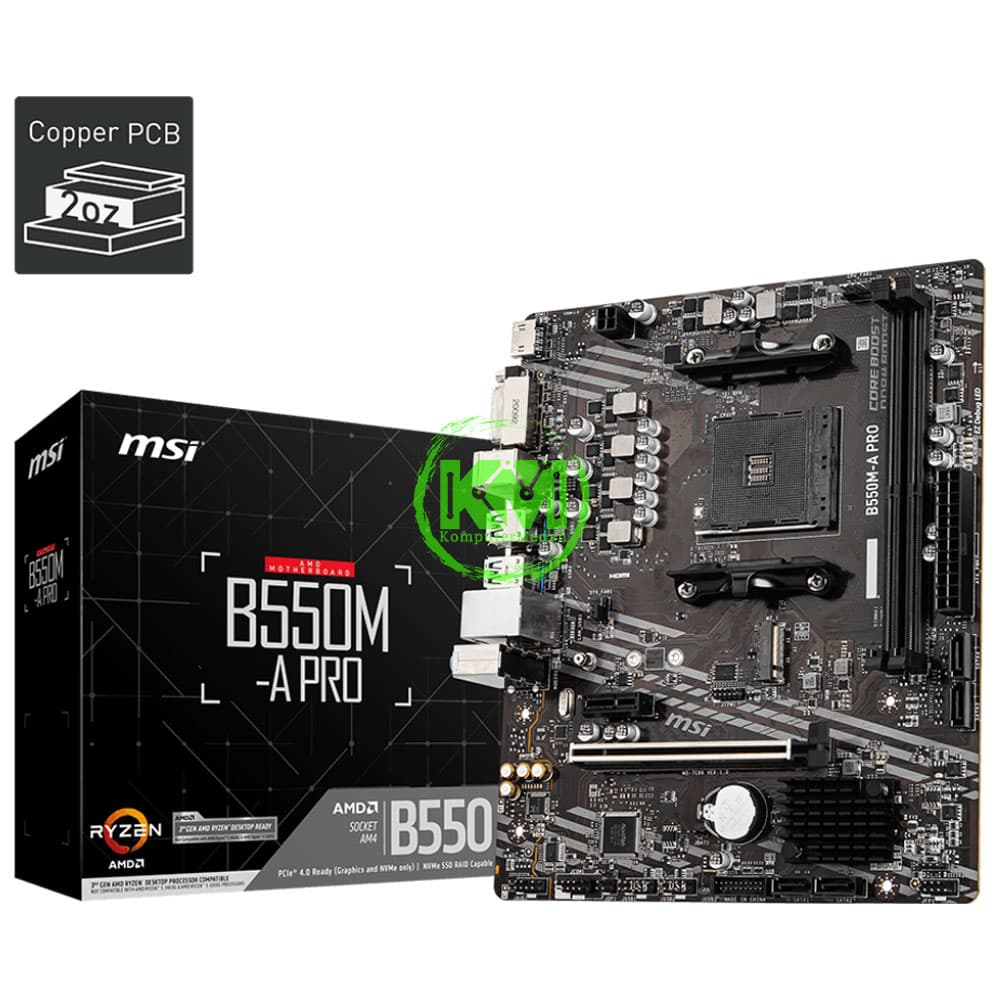

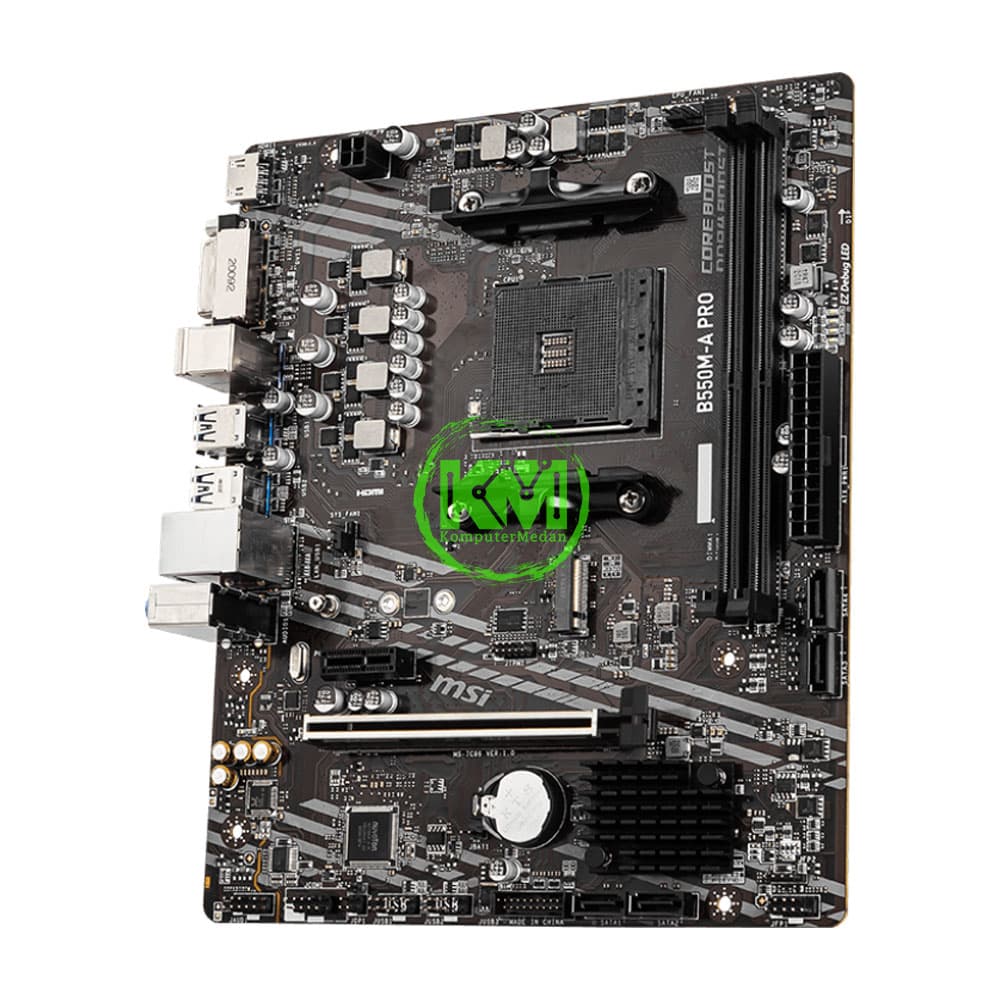

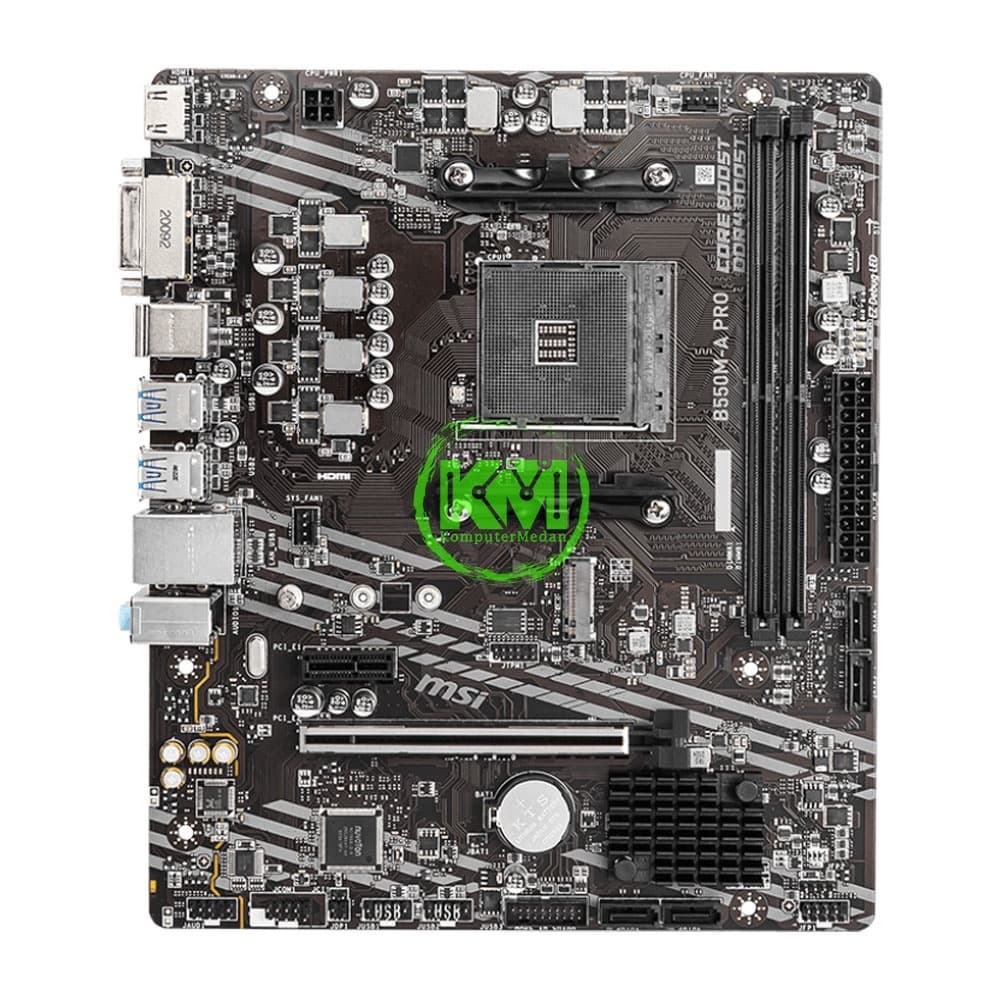

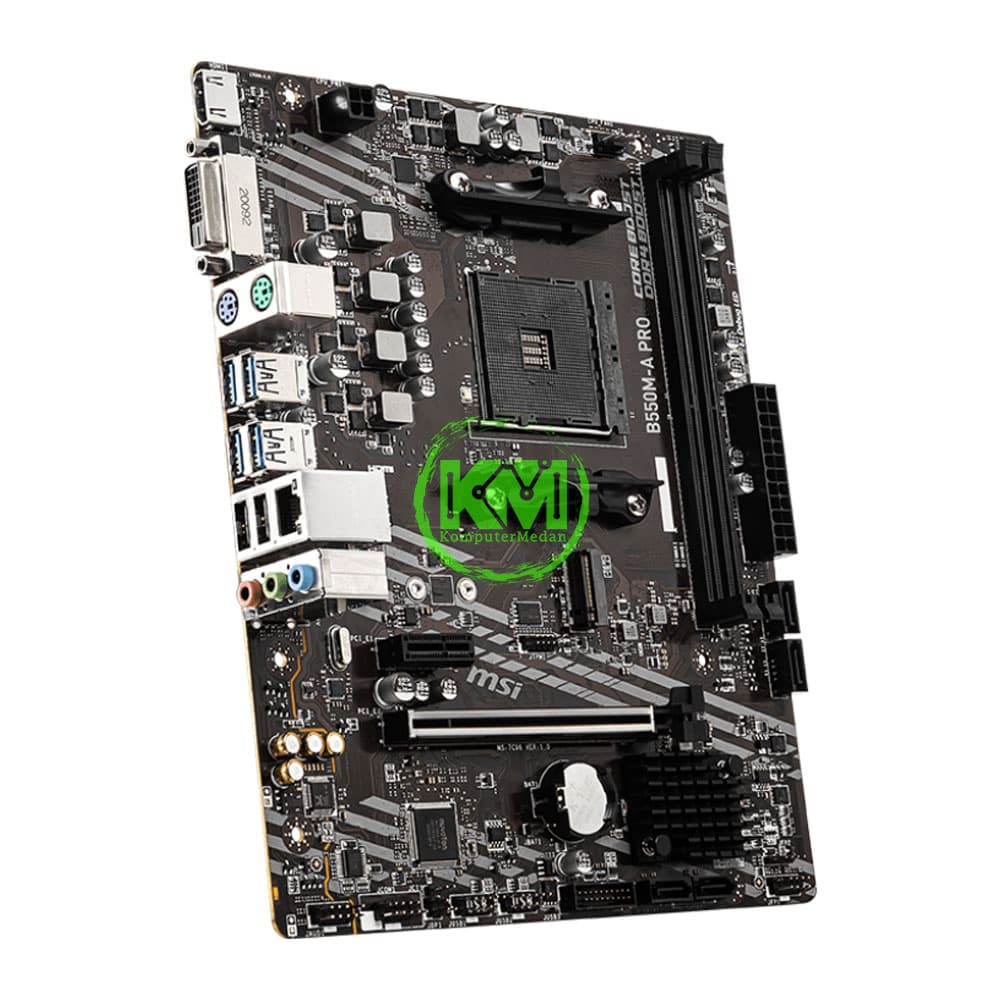

MSI B550M-A PRO (AMD) MOTHERBOARD
Fast shipping – All over Indonesia
100% Original Products- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors - Supports DDR4 Memory, up to 4600(OC) MHz - Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 - Core Boost: With premium layout and digital power design to support more cores and provide better performance - DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability - 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability - Audio Boost: Reward your ears with studio grade sound quality - Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
PRODUCT DETAIL
MSI B550M-A PRO (AMD) MOTHERBOARD SPESIFIKASI: CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors CHIPSET AMD B550 Chipset MEMORY -2x DDR4 memory slots, support up to 64GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE *1DPC 1R max speed 4600 MHz *1DPC 2R max speed 3866 MHz -Dual channel memory architecture -Supports non-ECC UDIMM memory -Supports ECC UDIMM memory (non-ECC mode) -Supports un-buffered memory EXPANSION SLOT 1x PCIe 3.0 x1 slot 1x PCIe 4.0/3.0 x16 slot ONBOARD GRAPHICS 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz Support HDCP 1.4 & 2.3 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz Maximum shared memory of 16 GB Storage AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 4.0/ 3.0 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices USB -AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) -AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel AUDIO Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio LAN 1x Realtek® RTL8111H Gigabit LAN controller INTERNAL CONNECTORS 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper Back panel ports -LAN port -HDMI™ -DVI-D -Keyboard / Mouse -USB 3.2 Gen 1 5Gbps Type-A -USB 3.2 Gen 1 5Gbps Type-A -USB 2.0 Ports -Audio Connectors Dimensions -Micro-ATX Form Factor -9.3 in. x 7.9 in. (23.6 cm x 20 cm) MOUNTING 8 mounting holes
