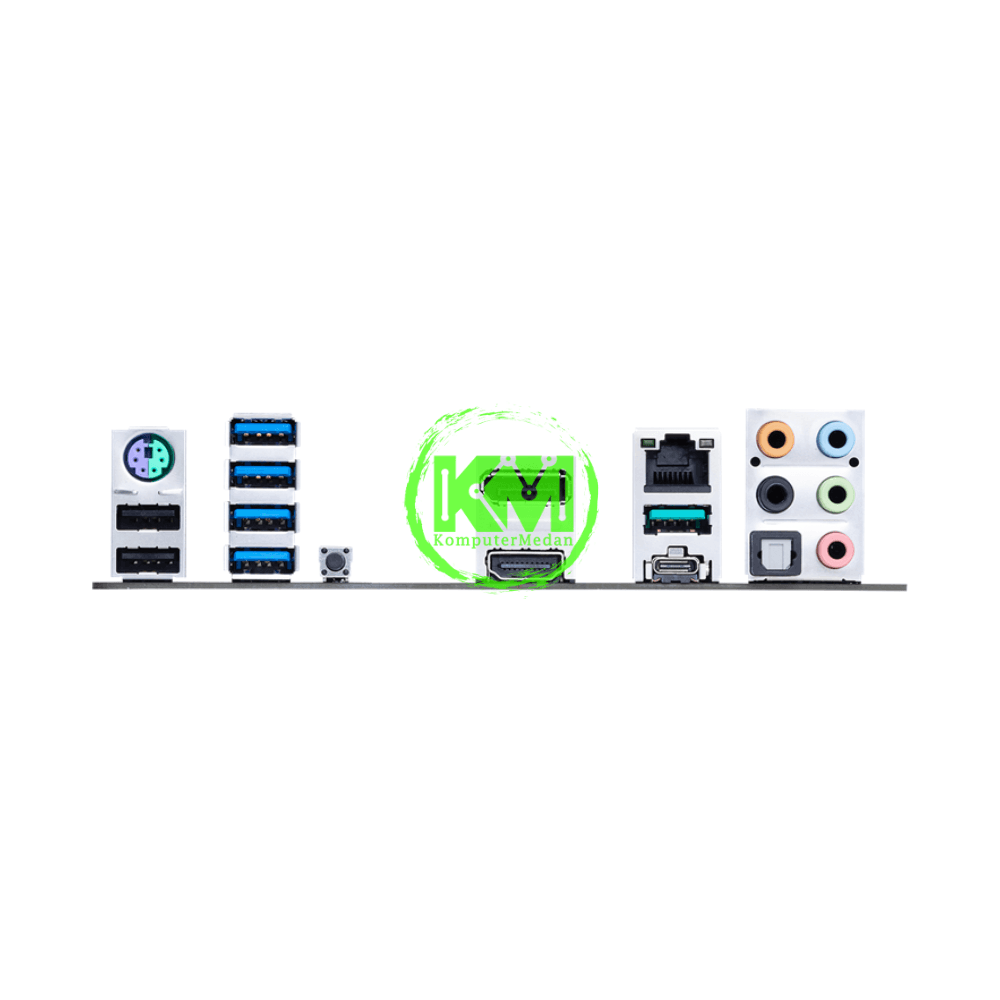

100% Original ProductsAMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support -Socket AM4: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors -Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade -TUF components, and Digi+ VRM for maximum durability -Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility -Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support -Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology -Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in -AI noise-canceling microphone: Provides crystal-clear in-game voice communication
PRODUCT DETAIL

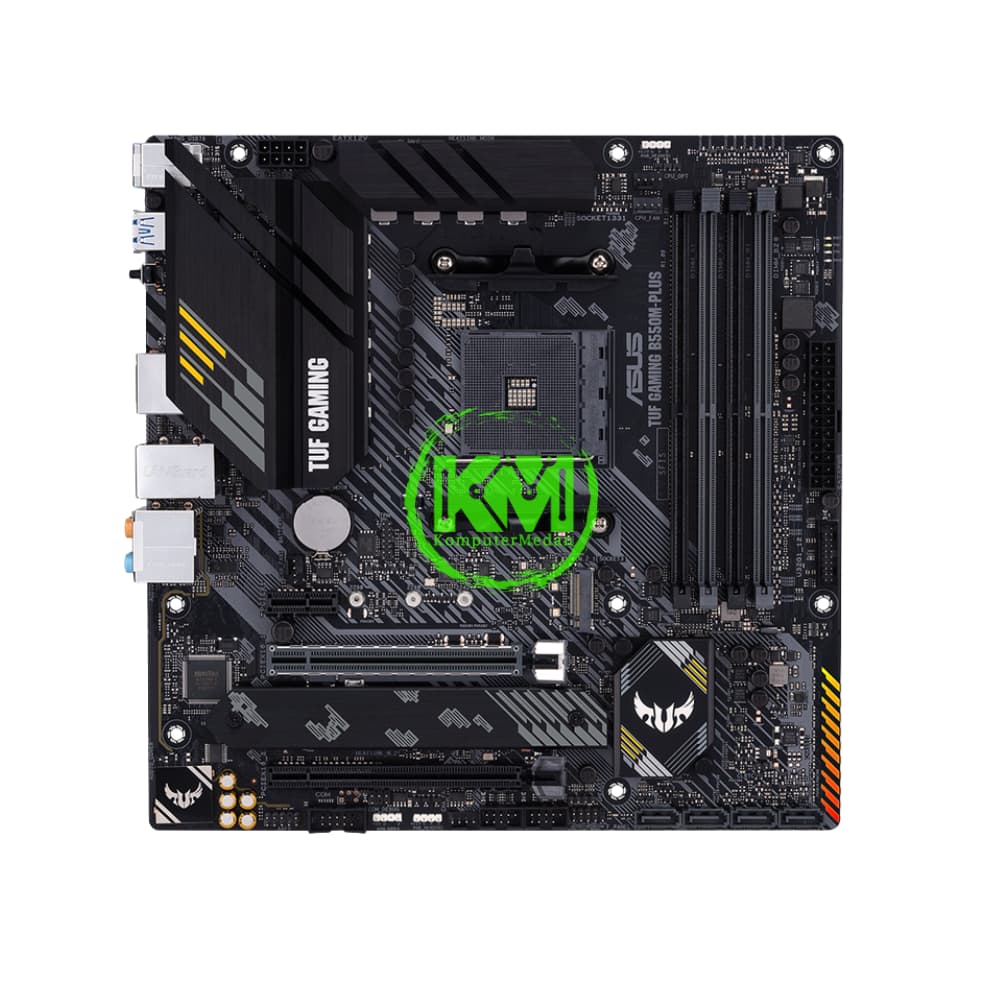

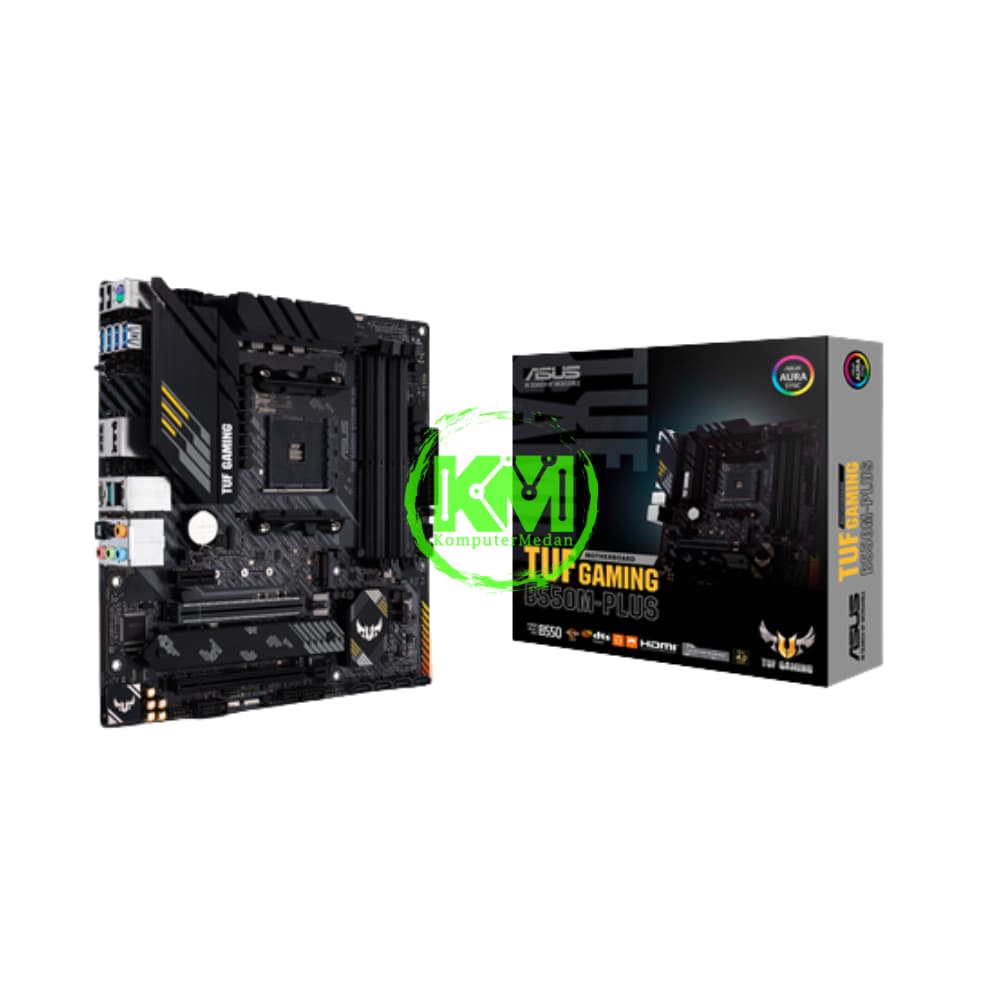

ASUS TUF GAMING B550M PLUS (AMD) MOTHERBOARD SPESIFIKASI : CPU * Refer to www.asus.com for CPU support list.,Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors * CHIPSET AMD B550 MEMORY * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/ 3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *,4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ 3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *, Next Generation AMD Ryzen PRO Processors ,3rd Gen AMD Ryzen™ Processors,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU. GRAPHIC 1 x DisplayPort 1.2,1 x HDMI 2.1(4K@60HZ) Multi-GPU Support Supports AMD 2-Way CrossFireX Technology EXPANSION SLOT * Support PCIe bifurcation for RAID on CPU function.,AMD B550 Chipset,1 x PCIe 3.0 x16 (x4 mode),1 x PCIe 3.0 x1,1 x PCIe 4.0 x16 (x16 mode) STORAGE 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support,AMD B550 Chipset : ,Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s),,3rd Gen AMD Ryzen™ Processors : ,Support Raid 0, 1, 10 LAN Realtek RTL8125B 2.5Gb Ethernet,TUF LANGuard AUDIO Realtek ALC S1200A7.1 Surround Sound High Definition Audio CODEC,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,- Audio Cover,- Premium Japanese audio capacitors,- Exclusive DTS Custom for GAMING Headsets.,Audio Feature :,- Optical S/PDIF out port(s) at back panel PORT USB 4 x USB 2.0 port(s)(4 x Type-A),Front USB Port ( Total 6 ),2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®),Rear USB Port ( Total 8 ),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 2.0 port(s)(2 x Type-A) SOFTWARE FEATURES ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS SPECIAL FEATURES ASUS TUF PROTECTION - ASUS DIGI+ VRM (Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header REAR I/O PORT 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®),1 x BIOS FlashBack™ Button(s),4 x USB 3.2 Gen 1 (blue) Type-A,1 x LAN (2.5G) port(s),1 x PS/2 keyboard/mouse combo port(s),1 x DisplayPort,1 x HDMI,2 x USB 2.0,1 x Optical S/PDIF out,5 x Audio jack(s) I/O INTERNAL 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode),1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x Speaker connector,1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),2 x Chassis Fan connector(s),4 x SATA 6Gb/s connector(s),1 x 8-pin EATX 12V Power connectors,1 x System panel connector,1 x COM port header,2 x Aura RGB Strip Headers,1 x Addressable Gen 2 header(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s) ACCESSORIES 1 x M.2 SSD screw package(s),1 x M.2 Rubber Package(s),1 x TUF GAMING Sticker,1 x TUF Certification card(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD BIOS 256 Mb Flash ROM, UEFI AMI BIOS MANAGEMENT SKILL WOL by PXE OPERATING SYSTEM Windows® 10 64-bit FORM FACTOR mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
